CM-3200

ITEM EXTENDED DESCRIPTION:

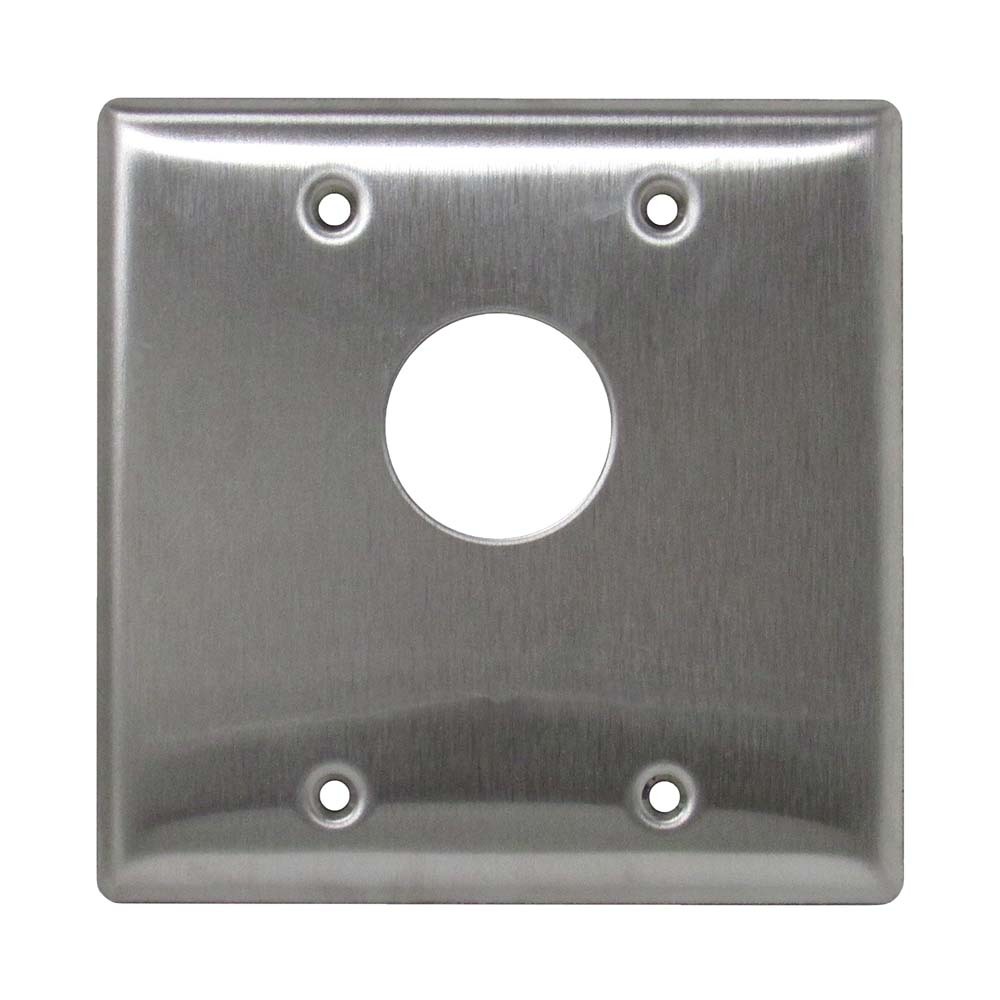

Flush Key Switch, SS 1 SPST Momentary, NO

SELECTION CODE:
396

SELECTION CODE DESCRIPTION:
396 KEY SWITCHES

PRODUCT CODE:
1 5/8″ BUTTON, ILLUMINATED, NARROW

PRODUCT CODE DESCRIPTION:
CM-3200 SERIES

Features:

Left and/or right operation|Accepts standard mortise cylinders, 1″ to 1-1/4″|Heavy duty double gang stainless steel faceplate|Locators prevent cylinders from spinning|Tamper proof screws and driver provided|Indoor and outdoor flush applications|Provision for up to 4 internal switches|Heat shrink protective sleeve over contacts|Color coded 18 AWG soldered leads|3 year warranty

Specifications:

“Contact Rating=6 A @ 30 VDC|Switch Life=All: 100,000 cycles|Temp Range=32°F to 85°F (0°C to +85°C)|Std. Finish=US32 / C32D|Dimensions=4-1/2″” x 4-1/2″” x 1-5/8″”
(114mm x 114mm x 41mm)”
