CM-332/40S

ITEM EXTENDED DESCRIPTION:

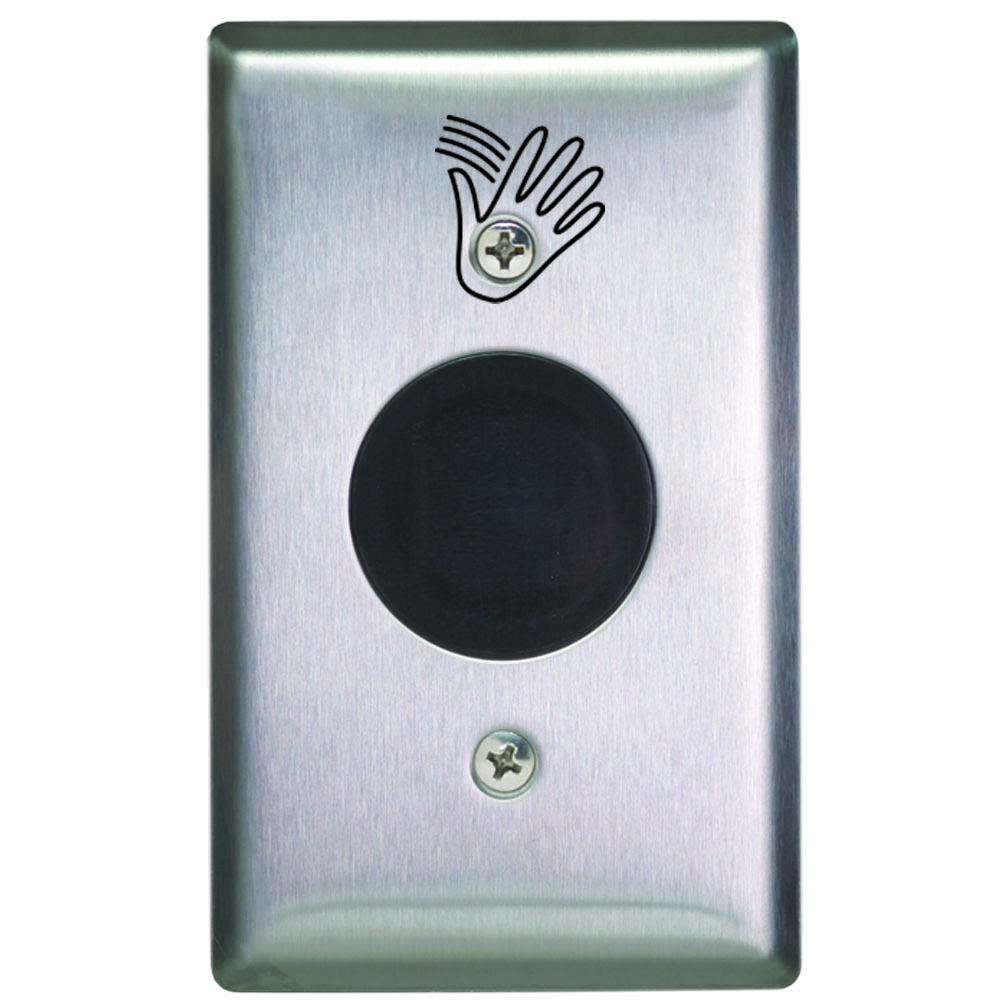

SUREWAVE Touchless Sw. Wired SS, 2 Relays, Hand Icon

SELECTION CODE:
303

SELECTION CODE DESCRIPTION:
303 HANDS FREE SWITCHES

PRODUCT CODE:
SUREWAVE(TM) SWITCHES

PRODUCT CODE DESCRIPTION:
CM-332 SERIES

Features:

Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC), gasket included|Advanced active infra-red technology with fast response|Heavy duty relay contacts|Adjustable operating range up to 28″, refer to model specification|Adjustable time delay, refer to model specifcation|Selectable fail safe/fail secure operation|2 Relays with bi-directional door sequencing avoids the need to purchase additional components

Specifications:

Technology=Active Infra-red, utilizing microburst sensing technology|Voltage=12-24V AC/DC|Contact Type=(2) SPDT Form ‘C’|Contact Rating=3 Amps @ 30 V|Current Draw=40 mA|Wireless=Optional Plug-In|Adjustable Operating Range=1″- 28″ (25mm-711mm)|Time Delay=3-30 Seconds|Operation=Selectable Fail Safe/Fail Secure|Motion Sensing Modes=Momentary, Momentary with Alarm, Maintained|Relay Operating Modes=Event, Sequence, Security, Toggle|Input=REX, Door Contact|Blue/Green/Red Light Ring=Optional

Manual

CM_331_332_333_336_324_325_Series-RESOURCE_FILE-manuals-66162_CM_331_CM_332_Manual_R5

Reference Guides

CM_331_332_333_336_324_325_Series-RESOURCE_FILE-referenceguides-64479_1_2_2_6_Battery_Powered_Wireless_and_Touchless_Activation

Specsheets

CM_331_332_333_336_324_325_Series-RESOURCE_FILE-specsheets-62632_CM_336_Spec_Sheet_R1
