CM-8536K/4

ITEM EXTENDED DESCRIPTION:

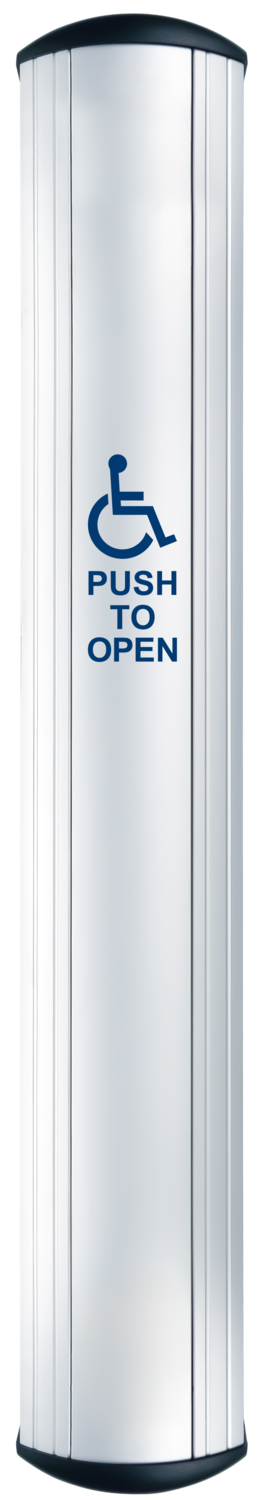

36×6 KINETIC Side Load Push Plate Switch, Wheelchair & PTO

SELECTION CODE:
359

SELECTION CODE DESCRIPTION:
359 ALL ACTIVE SWITCHES

PRODUCT CODE:
COLUMN(TM) SIDE LOAD PUSH PLATE SWITCHES

PRODUCT CODE DESCRIPTION:
CM-85 SERIES

Features:
“TOP LOAD 6″” WIDE – CM-75 SERIES & 4.5″” WIDE – CM-74 SERIES : OBC, NBC, & CSA compliant. 1-1/2″” (12.7mm) deep
(Stainless Steel model not CSA compliant)|TOP LOAD 6″” WIDE – CM-75 SERIES & 4.5″” WIDE – CM-74 SERIES : Option for built-in touchless activation sensor|TOP LOAD 6″” WIDE – CM-75 SERIES & 4.5″” WIDE – CM-74 SERIES : Option for Kinetic™ or Lazerpoint wireless|TOP LOAD 6″” WIDE – CM-75 SERIES & 4.5″” WIDE – CM-74 SERIES : Surface mount with leveling screws (no back box)|SIDE LOAD 6″” WIDE – CM-85 SERIES & 4.5″” WIDE – CM-84 SERIES : 2-1/4″” (32mm) deep with CSA compliant activation plate|SIDE LOAD 6″” WIDE – CM-85 SERIES & 4.5″” WIDE – CM-84 SERIES : Heavy-duty extruded aluminum construction|SIDE LOAD 6″” WIDE – CM-85 SERIES & 4.5″” WIDE – CM-84 SERIES : Option for built-in touchless activation sensor|SIDE LOAD 6″” WIDE – CM-85 SERIES & 4.5″” WIDE – CM-84 SERIES : Option for Kinetic™ or Lazerpoint wireless|SIDE LOAD 6″” WIDE – CM-85 SERIES & 4.5″” WIDE – CM-84 SERIES : Option for DPDT switches|SIDE LOAD 6″” WIDE – CM-85 SERIES & 4.5″” WIDE – CM-84 SERIES : Surface mount with integral back box”

Specifications:
“Standard Models : Voltage=N/A|Standard Models : Contact Rating=15 Amps @ 30 VDC|Standard Models : Contact Type=SPDT Momentary, Form ‘C’
Optional DPDT Switch Used With CM-84 & 85 Series|VR Models : Voltage=12-24 VDC +/- 10%|VR Models : Contact Rating=1 Amp @ 30 VDC|VR Models : Contact Type=Common / N.O. / N.C.
Optional DPDT Switch Used With CM-84 & 85 Series”

Manual

CM_74_75_CM_84_85_Series-RESOURCE_FILE-manuals-67320_CM_8436_Series_Manual_R3

Reference Guides

CM_74_75_CM_84_85_Series-RESOURCE_FILE-referenceguides-66091_Column_Switch_Comparison_Chart

Specsheets

CM_74_75_CM_84_85_Series-RESOURCE_FILE-specsheets-66396_Column_Switch_Spec_Sheet
