ITEM EXTENDED DESCRIPTION:

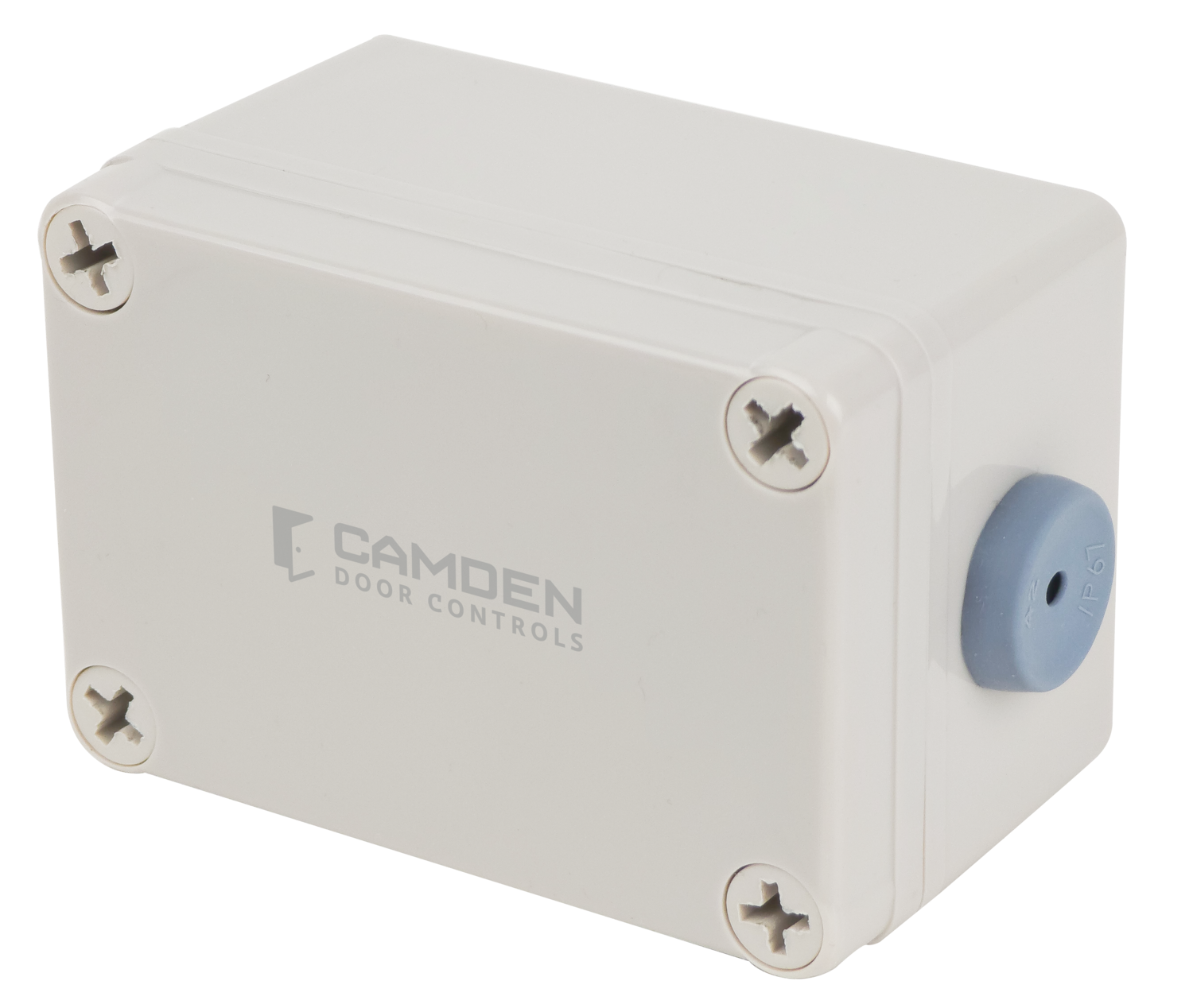

Two Channel Receiver,SPDT, 868 Mhz Wireless Relay Receiver
SELECTION CODE:
385
SELECTION CODE DESCRIPTION:
385 RF WIRELESS
PRODUCT CODE:
868 MHz WIRELESS SYSTEM
PRODUCT CODE DESCRIPTION:
868MHz TX & RX
Features:
CM-SRX2 : 868Mhz. high security rolling code, with 19 trillion combinations|CM-SRX2 : 2-channel receiver|CM-SRX2 : 1st relay momentary, 2nd relay momentary or latching operation|CM-SRX2 : 30 transmitters (fobs) capacity|CM-SRX2 : Easy transmitter enrollment|CM-SRX2 : Built-in antenna|CM-SRX2 : IP65 rated weather-resistant enclosure
Specifications:
“CM-SRX2 : Voltage=12/24V, AC/DC|CM-SRX2 : Frequency=868.35 Mhz.|CM-SRX2 : Current Draw=(Max) 80mA|CM-SRX2 : Relay=(1) SPST, normally open, 1st relay momentary, 2nd momentary or latching/bi-stable, SPST normally closed, 1A @ 30 VDC|CM-SRX2 : Operating Temp=-4°F to 185°F (-20°C to +85°C)|CM-SRX2 : Dimensions=2-17/32″”W x 3-3/4″”H x 2-7/32″”D
(64mm x 95mm x 56mm)”
Manual
CM_SR_Series-RESOURCE_FILE-manuals-65801_CM_SRFM2_Manual_R1
Specsheets
CM_SR_Series-RESOURCE_FILE-specsheets-65889_CM_SR_Series_Spec_Sheet_Rev3
