CV-603VR10

ITEM EXTENDED DESCRIPTION:

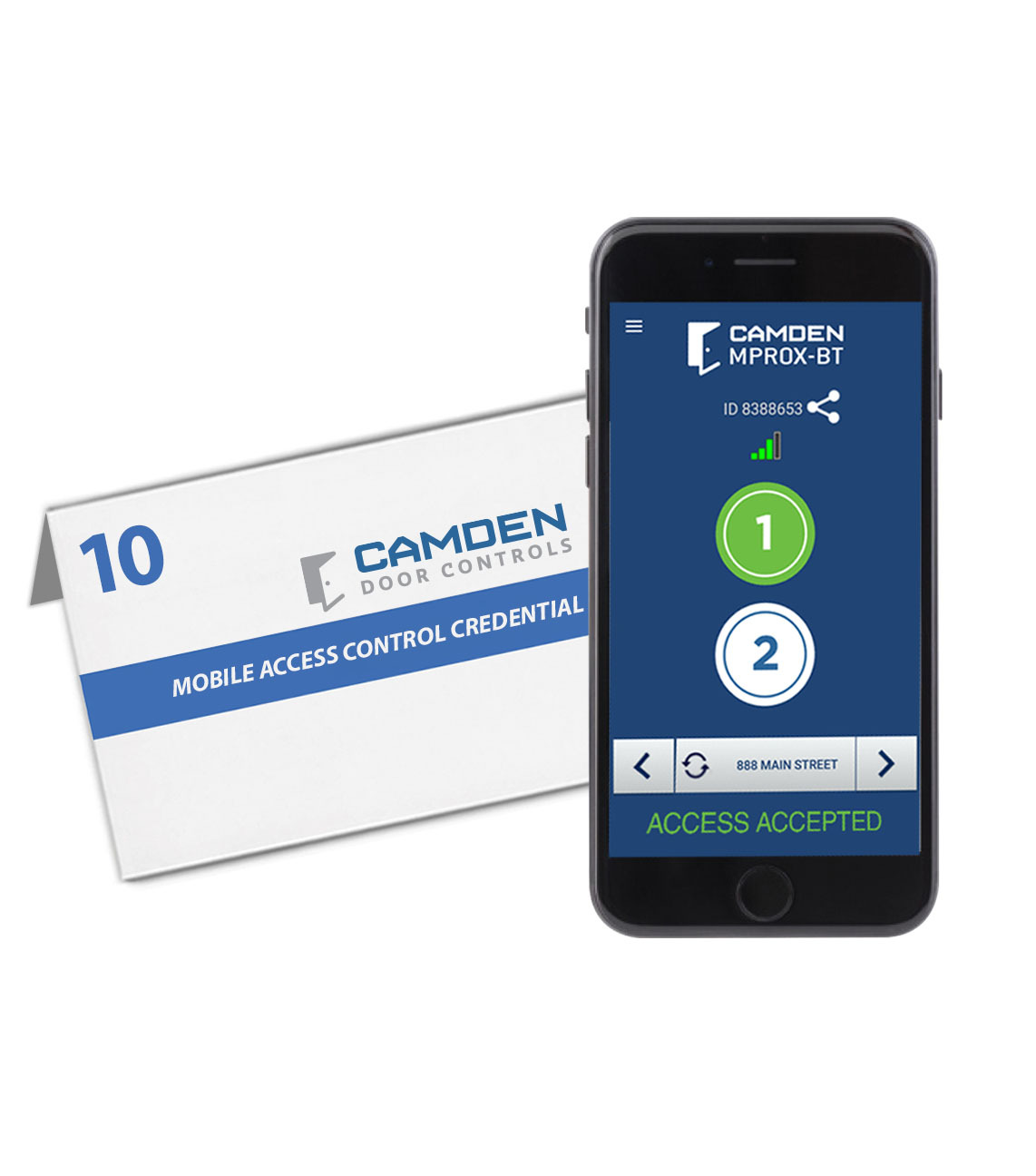

Mprox-BLE Virtual Remote License Key 10 Pack

SELECTION CODE:
712

SELECTION CODE DESCRIPTION:
712 ACCESS CONTROL SYSTEMS

PRODUCT CODE:
BLE ACCESS CONTROL SYSTEM

PRODUCT CODE DESCRIPTION:
CV-603 SERIES

Features:
No PC required. Programmed via smartphone Bluetooth(R) App|2,000 User Capacity|Built-in Bluetooth® mobile credentials option|Wiegand Reader protocol – 26, 30, 34 and 37 bits|Common Alarm Relay – Trigger remote devices|Anti-pass back – Higher level of security|Sensor Input – For door position switch or vehicle loop detector|Form C relays – Fail-safe or Fail-secure electric locks|Built-in 433 Mhz. key fob receiver – used with CX-TXM-2 two button transmitters|Encrypted rolling code and protected AES128 transmission of transmitters|Operator Security Levels – 5, configurable|3 year warranty

Specifications:
Voltage=12 VDC|Current Draw=< 100 mA|Contact Rating=1A @ 12V AC/DC|Users=2000|Reader Inputs=2|Reader Outputs=2|Reader Input Types=Wiegand 26, 30, 34, 37 Bit|Receiver Frequency=433 Mhz.|DIN Rail Mount=Yes|Temperature Range=-4°F to 131°F (-20°C to +55°C)|Relay Output Types=Timed 1 – 180 seconds, Momentary, bi-stable / latch|CV-603 Dimensions=4-1/2″ H x 3-1/2″ W x 1-3/4″ D (115mm x 90mm x 44mm)|CX-TXM-2 Dimensions=2-5/8″ H x 1-1/4″ W x 1/2″ D (66mm x 30mm x 11mm)

Manual

CV_603_Series_MProx_BLE-RESOURCE_FILE-manuals-62522_CV_603_Reference_Manual_R9

Specsheets

CV_603_Series_MProx_BLE-RESOURCE_FILE-specsheets-62633_CV_603VR5

Video
