CX-12PLUS

ITEM EXTENDED DESCRIPTION:

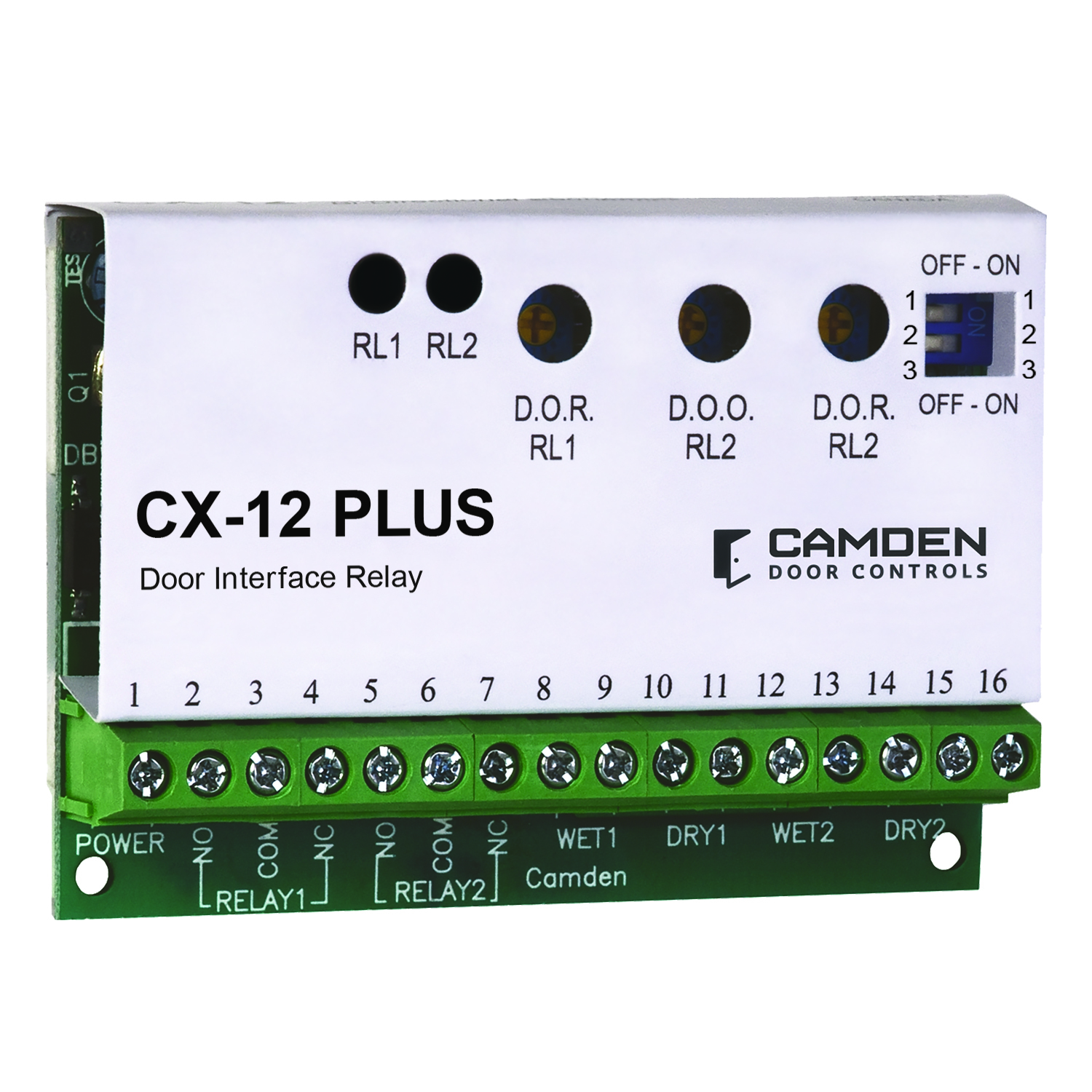

Door Interface Relay w/ 8 Modes, 2 SPDT Outputs

SELECTION CODE:
140

SELECTION CODE DESCRIPTION:
140 DOOR CONTROL RELAYS

PRODUCT CODE:
SWITCHING NETWORK

PRODUCT CODE DESCRIPTION:
CX-12

Features:
Designed for easy interconnection of automatic doors with access control, time control, telephone entry and fire alarm systems|Bi-directional sequencing of two door operators in vestibule applications|New ‘PLUS’ feature supports basic restroom control (locked & unlocked)|8 Programming modes with (3) adjustable time delays, each up to 30 seconds|(2) Dry, (2) Wet inputs, and (2) SPDT Form ‘C’ outputs|Momentary, maintained and latching (ratchet or alternative action) relay operation|Compact design fits anywhere

Specifications:
Voltage=12/24V AC/DC|Current Draw=20 mA Idle, 60 mA Operating|Response Time=0.3 Seconds|Inputs=2 Wet, & 2 Dry, N.0.|Outputs=2 x Form C (SPDT)|Contact Rating=3 Amps @ 30V DC|Electrical Life=100,000 @ Rated Capacity|Modes=8|Time Delay D.O.R #1=1-30 Seconds|Time Delay D.O.O #2=1-30 Seconds|Time Delay D.O.R #3=1-30 Seconds|Dimensions:=3-1/4″W x 2-5/16″H x 11/16″D (83mm x 58mm x 18mm)
