CX-PS150UL

OVERVIEW

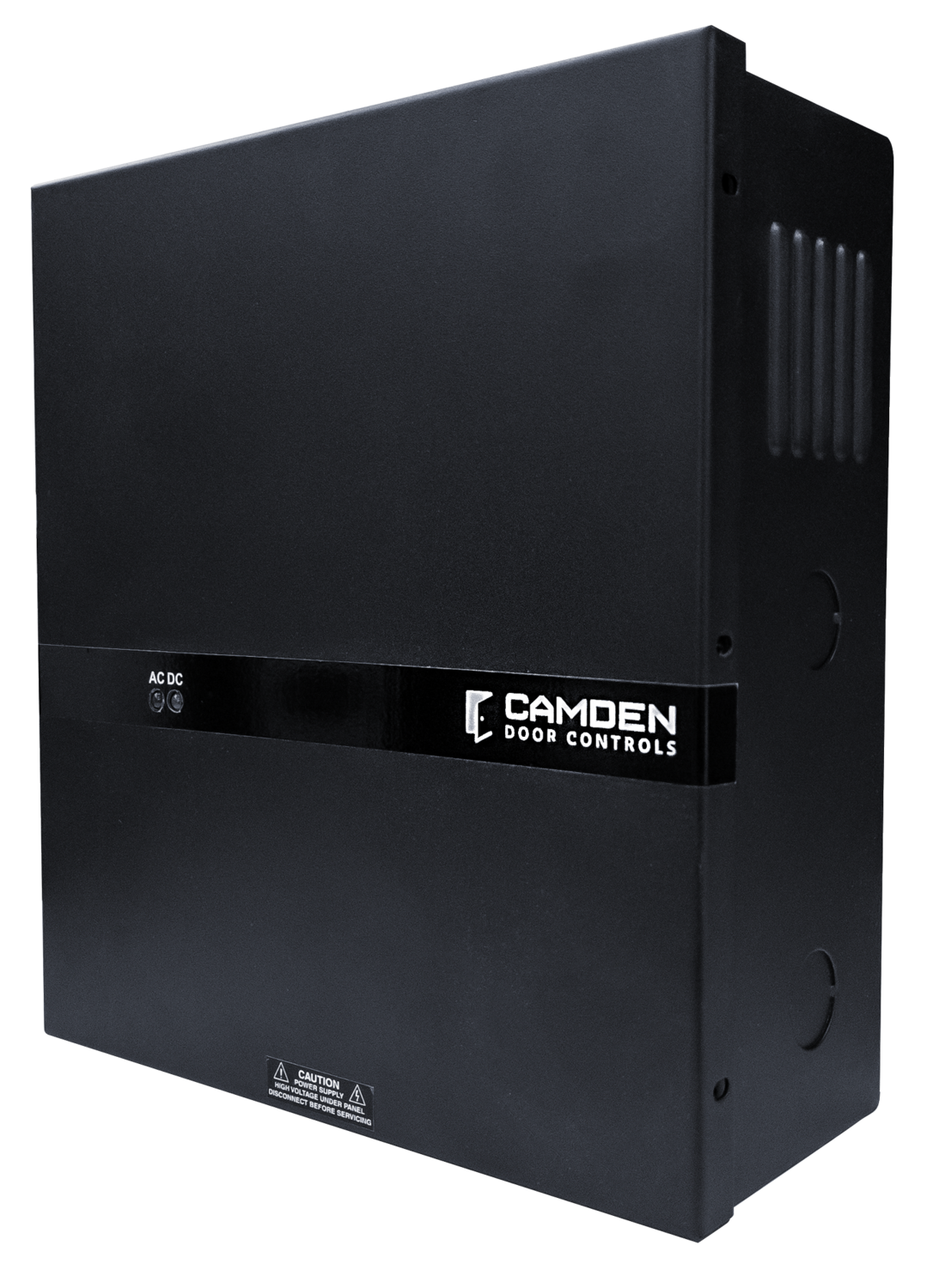

Camden CX-PS150UL 1.7 Amp power supplies are ideal for powering electric strikes and magnetic locks in access control, door control, and other low-voltage applications. CX-PS Series power supplies are UL 294, ULC S533, and 60839-11-1 listed.

Compare
Add to wishlist
Categories: ,
Description

ITEM EXTENDED DESCRIPTION:
1.7 Amp Power Supply, (2) Fused Outputswith metal cabinet

SELECTION CODE:
117

SELECTION CODE DESCRIPTION:
117 POWER SUPPLIES

PRODUCT CODE:
POWER SUPPLY W/CABINET

PRODUCT CODE DESCRIPTION:
CX-PS SERIES

Features:
CX-PS150UL : Latching fire alarm tie-in with reset|CX-PS150UL : 12 or 24 VDC selectable 1.7 Amp output|CX-PS150UL : 12 or 24 VDC 200mA auxiliary output|CX-PS150UL : AC and DC power and status indicators|CX-PS150UL : Short circuit and terminal protection|CX-PS150UL : Battery charger (500mA)|CX-PS150UL : 120 VAC power input|CX-PS150UL : Metal enclosure accommodates (1) 4 Ah. battery (not included)

Specifications:
“Output Power=(2) 1.7 Amps, 500mA Battery Charger|Output Protection=Short Circuit Protection|Voltage=120 VAC|Output Voltage=12/24 VDC|Enclosure Accomodates=(1) 12 VDC / 4 Ah Battery|Dimensions=9-1/8″”H x 8″”W x 3-1/2″”D
(231 x 204 x 89mm)”

Manual

  CX_PS_Series-RESOURCE_FILE-manuals-63113_CX_PS150UL_Power_Supply_Manual

Specsheets

CX_PS_Series-RESOURCE_FILE-specsheets-61410_CX_PS_Series_Spec_Sheet
