CV-7600

ITEM EXTENDED DESCRIPTION:

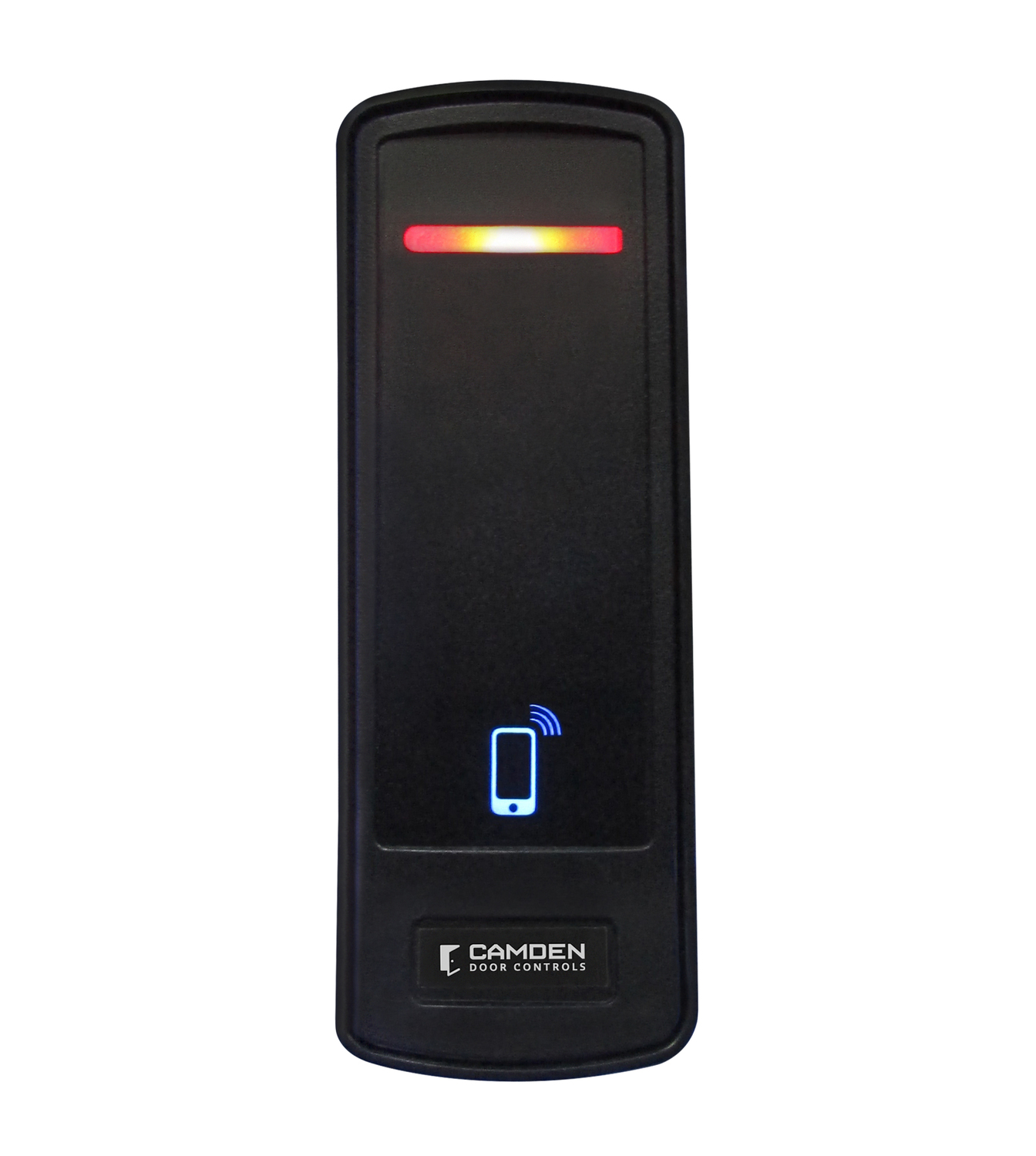

MIFARE-BLE Reader For Smartphone Credentials

SELECTION CODE:
720

SELECTION CODE DESCRIPTION:
720 ACCESS CONTROL DEVICES

PRODUCT CODE:
ACCESS SYSTEM READERS AND CARDS

PRODUCT CODE DESCRIPTION:
CV-SERIES

Features:
A range of Bluetooth readers, 1 to up to 30 feet read range|Compatible with all access control systems|Smartphone App, Android™ and Apple iOS™ compatible|MIFARE DESFire EV1 & EV2 smart card/tag compatible, prevents cloning|26-bit Wiegand, ABA Track II magnetic strike (clock & data) and ODSP interface (special order)|IP67 water resistant|Narrow (jamb) width with option for single gang mounting plate, included|3 year warranty

Specifications:
“Voltage=8 – 14 VDC|Current Draw=40 mA typical @ 12VDC 195 mA peak|Frequency=13.56 MHz (contactless smartcard) 2.4 GHz (BLE)|Cabling=24 AWG minimum, multi-conductor stranded with foil shield|Interface=Wiegand (26-bit formats), ABA Track II magnetic strike (clock & data) or OSDP|Operating Temp=-40°F to 149°F (-40°C to 65°C)|LED Control=Blue, Red, Green, Amber and Off|Read Range=Cards/Tags: Up to 1.5″” (38mm)
Mobile: CV-7600 – 1 ft (30cm) to 30 ft (9 am) field adjustable|Audio Tone=Beeper included|Protection=IP67|Dimensions=Mullion: 1-3/4″” W x 4-3/4″” H x 1-3/16″” D
(44mm x 119mm x 30mm)

Single Gang: 3″” W x 5-1/8″” H x 1-3/16″” D
(76mm x 130mm x 30mm)”

Manual

  CV_7600_Series-RESOURCE_FILE-manuals-63095_CV_7600_BLE_Manual_v3_FR

Reference Guides

CV_7600_Series-RESOURCE_FILE-referenceguides-55258_CV_7600_App_and_Credential_Set_up

Specsheets

CV_7600_Series-RESOURCE_FILE-specsheets-61901_CV_7600_Series_Spec_Sheet
