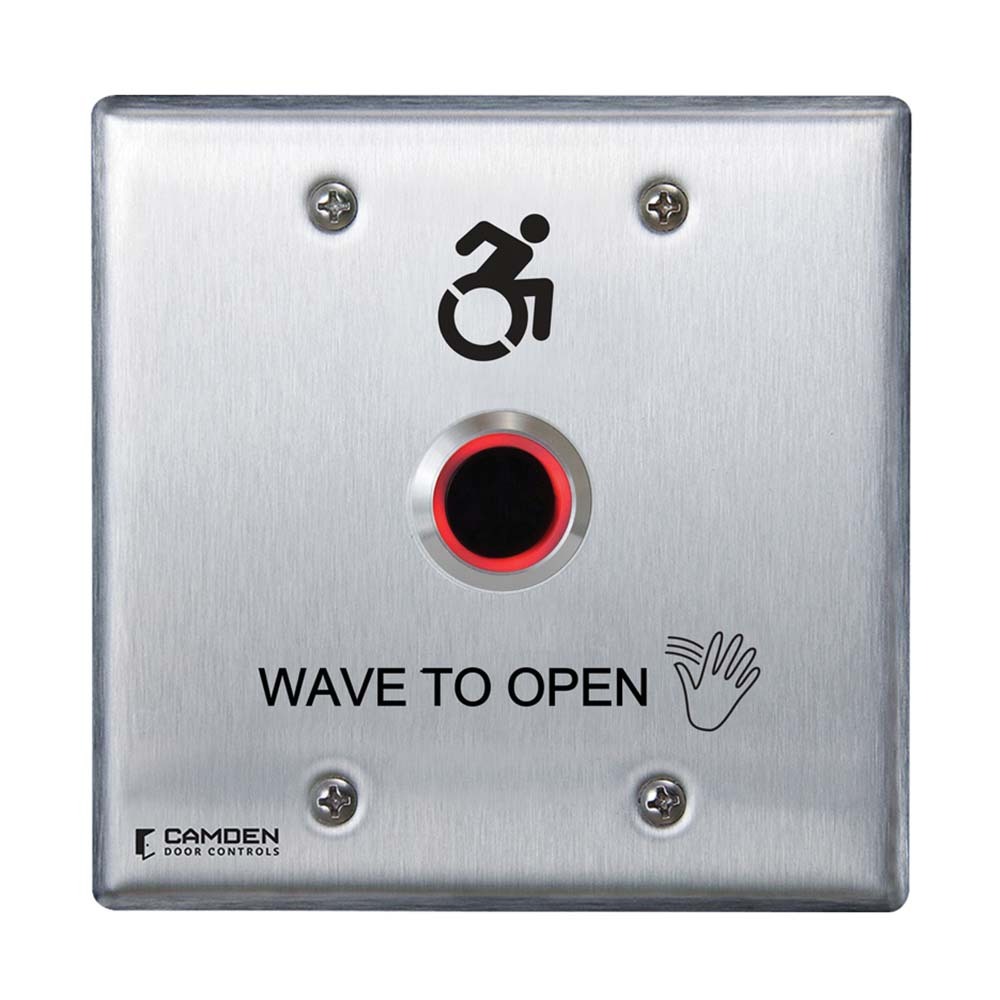

CM-221/A42W

ITEM EXTENDED DESCRIPTION:
ValueWave Sw. SS, 2Gang, 1 Relay, Active WC, WTO & Hand

SELECTION CODE:
327

SELECTION CODE DESCRIPTION:
327 HANDS FREE SWITCHES

PRODUCT CODE:
VALUEWAVE(TM) SWITCHES

PRODUCT CODE DESCRIPTION:
CM-221 SERIES

Features:

Adjustable sensor range 2″ to 8″ (5 to 20 cm)|Adjustable time delay (0.5 to 20 sec.) and toggle operation|Red/green OR blue/green light ring with switch or remote activation|Weather/water resistant, IP 65 rated|Single, narrow and double gang stainless steel faceplates|Selection of faceplate laser etched graphics, resistant to cleaners|(1) Form ‘C’ contact, 1A @ 30 VDC|3 year warranty

Specifications:

“Voltage=12 – 24 VDC ± 10%
Regulated power supply required.|Current Draw=45 mA (PEAK)|Response Time=10ms|Temp Range=-13ºF TO 122ºF
(-25ºC TO +50ºC)|Contact Rating=1 AMP @ 30 VDC|Contact Type=COMMON / N.O. / N.C.”

Manual

CM_221_CM_222_Series-RESOURCE_FILE-manuals-66866_CM_221_CM_222_Manual_FR_R1

Reference Guides

CM_221_CM_222_Series-RESOURCE_FILE-referenceguides-55370_SureWave_ValueWave_Product_Comparison_Chart_R1

Specsheets

CM_221_CM_222_Series-RESOURCE_FILE-specsheets-66829_CM_221_222_Spec_Sheet_R5

video
