CM-30EE

OVERVIEW

Camden CM-30 Series UL compliant LED illuminated ‘request to exit’ (REX) switches are momentary DPDT,conform to NFPA code requirements and are ADA compliant. They are designed to control electric locks, electromagnetic locks, electric strikes and low energy door operators. They may also be used for shunting, bypassing alarms, request to exit, timed functions and many other applications and includes universal multi labels in french and english.

Compare
Add to wishlist
Categories: ,
Description

ITEM EXTENDED DESCRIPTION:

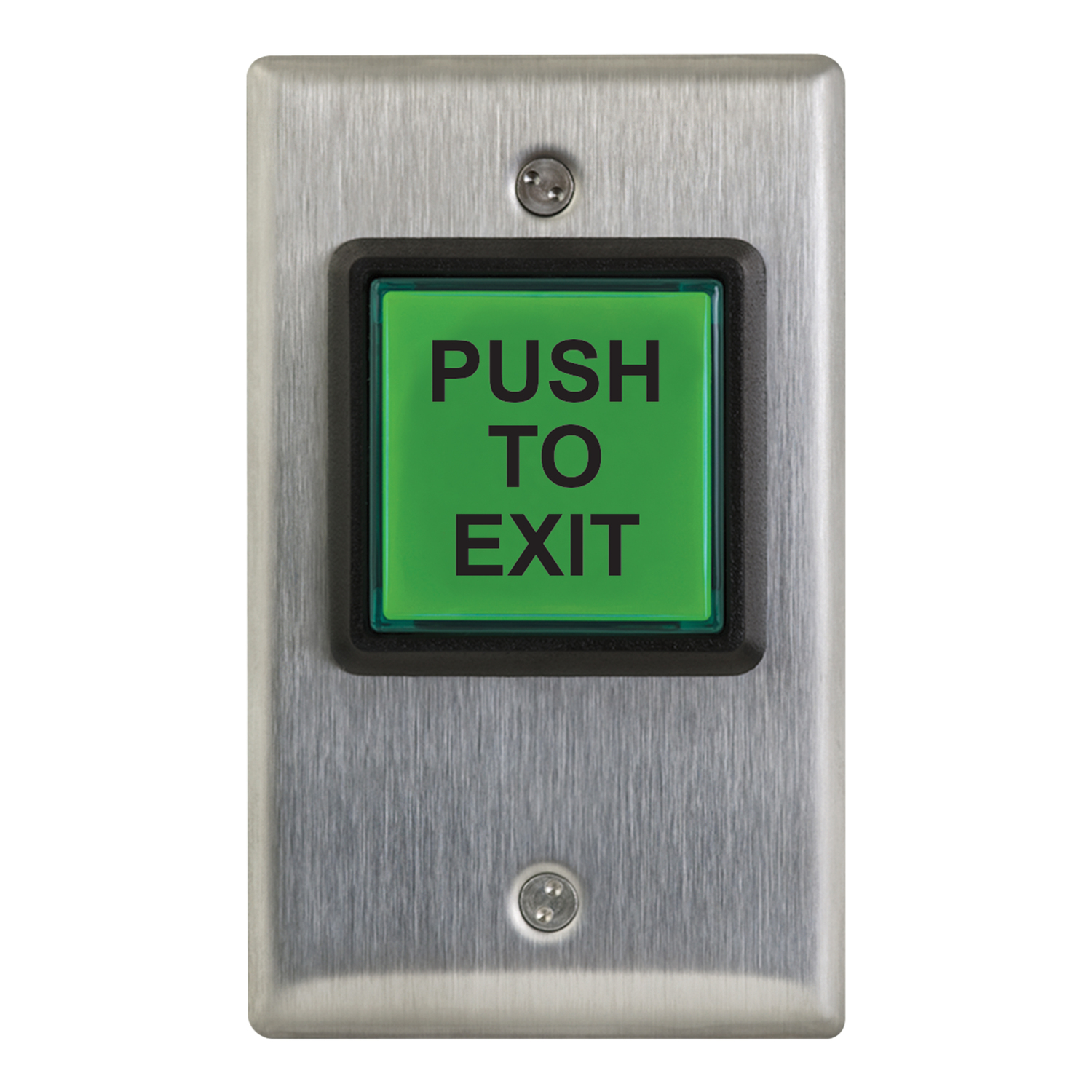

Illum 2″ Sq.Switch GRN, 1Gang ‘Push to Exit’ w/ 30 sec.Timer

SELECTION CODE:
202

SELECTION CODE DESCRIPTION:
202 PUSH / EXIT BUTTONS

PRODUCT CODE:
2″ BUTTON, ILLUMINATED

PRODUCT CODE DESCRIPTION:
CM-30 SERIES

Features:

Large 2″ square LED illuminated button|Heavy duty stainless steel faceplate|In-wall back box included|12/24V with LED bulb|Tamper proof screws and driver included|3 year warranty|30 second fixed timer|Double break design for additional security

Specifications:

Voltage=12/24 VDC|Contact Type=SPDT Form ‘C’|Contact Rating=10 A @ 30 VDC|Switch Type=Momentary|Dimensions=4-1/2″ x 2-3/4″ x 2-1/2″ (114.3mm x 69.85mm x 63.5mm)|Std. Finish=US/C 32D|Mounting=Single gang in-wall box included

Manual

CM_30EE_AT-RESOURCE_FILE-manuals-65966_CM_30AT_Manual_R2

Reference Guides



CM_30EE_AT-RESOURCE_FILE-referenceguides-51596_Push_Exit_Button_Cross_Reference

Specsheets

CM_30EE_AT-RESOURCE_FILE-specsheets-53350_CM_30EE_AT_Spec_Sheets_R2
