CM-331/41

ITEM EXTENDED DESCRIPTION:

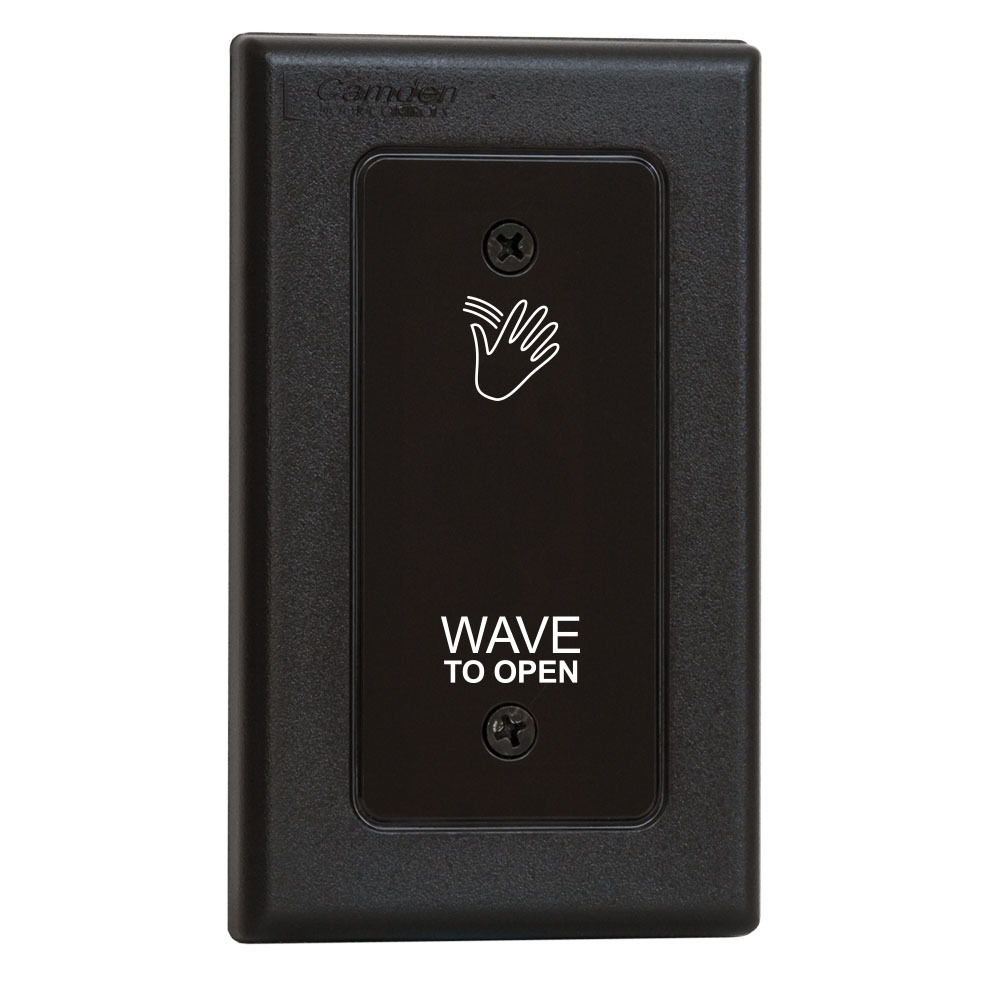

SUREWAVE Touchless Sw. Wired, BLK, 1 RLY, 2 I/P Hand/WTO

SELECTION CODE:
302

SELECTION CODE DESCRIPTION:
302 HANDS FREE SWITHCES

PRODUCT CODE:
SUREWAVE(TM) SWITCHES

PRODUCT CODE DESCRIPTION:
CM-331 SERIES

Features:

Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC), gasket included|Advanced active infra-red technology with fast response|Heavy duty relay contacts|Adjustable operating range up to 28″, refer to model specification|Adjustable time delay, refer to model specifcation|Selectable fail safe/fail secure operation|1 Relay with 5 selectable operating modes, inputs for Request to Exit and door contact

Specifications:

Technology=Active Infra-red, utilizing microburst sensing technology|Voltage=12-24V AC/DC|Contact Type=(1) SPDT Form ‘C’|Contact Rating=3 Amps @ 30 V|Current Draw=40 mA|Wireless=Optional Plug-In|Adjustable Operating Range=1″- 28″ (25mm-711mm)|Time Delay=3-30 Seconds|Operation=Selectable Fail Safe/Fail Secure|Motion Sensing Modes=Momentary, Momentary with Alarm, Maintained|Relay Operating Modes=Event, Toggle|Input=REX, Door Contact|Blue/Green/Red Light Ring=Optional
