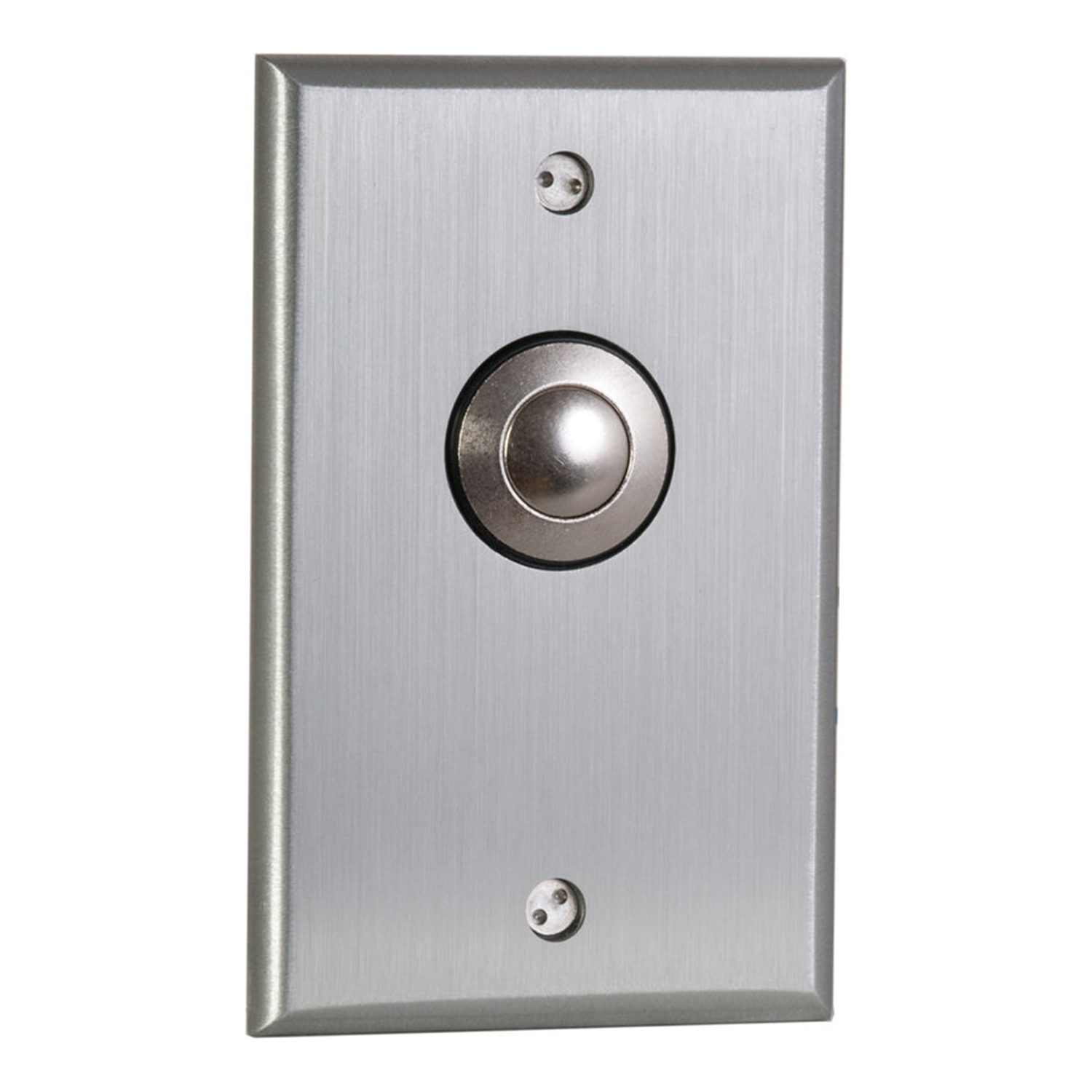

CM-9080
CM-9080
Back to products

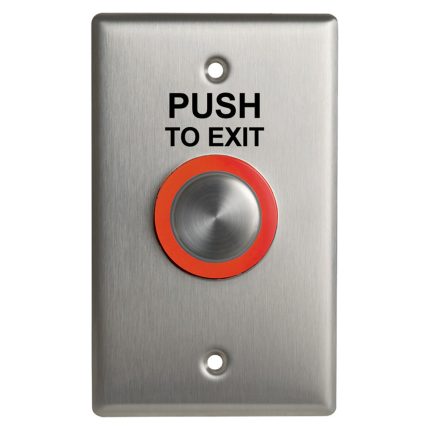

CM-9600/7
CM-9600/7

CM-9600

OVERVIEW

Camden CM-9600 Series flush mount illuminated piezo push switches offer high visibility and weather/vandal resistance. The units feature a heavy duty stainless steel faceplate and adjustable 40 second timer.

Compare
Add to wishlist
Categories: ,
Description

ITEM EXTENDED DESCRIPTION:
Illuminated Piezoelectric Switch, SS Faceplate

SELECTION CODE:
208

SELECTION CODE DESCRIPTION:
208 PUSH / EXIT BUTTONS

PRODUCT CODE:
VANDAL RESISTANT, ILLUMINATED

PRODUCT CODE DESCRIPTION:
CM-9600 SERIES

Features:
Rugged stainless steel face plate|Red and/or green illumination|Fail safe / non fail safe selectable|N/O & N/C outputs|Integrated adjustable 40 second timer|Lifetime warranty



Specifications:

“Voltage=12/24 VDC|Contact Rating=2 A @ 30 VDC|Contact Type=1 x N/C, 1 x N/O|Time Delay=1-40 seconds|Temp Range=-40°F to +180°F
(-40°C to +82°C)|Dimensions=4-1/2″” x 2-3/4″” x 1-1/2″”
(114mm x 70mm x 38mm)|Std. Finish=US32 / C32D”

Manual

CM_9600_9610-RESOURCE_FILE-manuals-32178_CM_9600_Series_Instructions

Reference Guides



CM_9600_9610-RESOURCE_FILE-referenceguides-52817_Push_Button_Switch_Cross_Reference

Specsheets

CM_9600_9610-RESOURCE_FILE-specsheets-53432_CM_9600_9610_Spec_Sheet_R1
