OVERVIEW

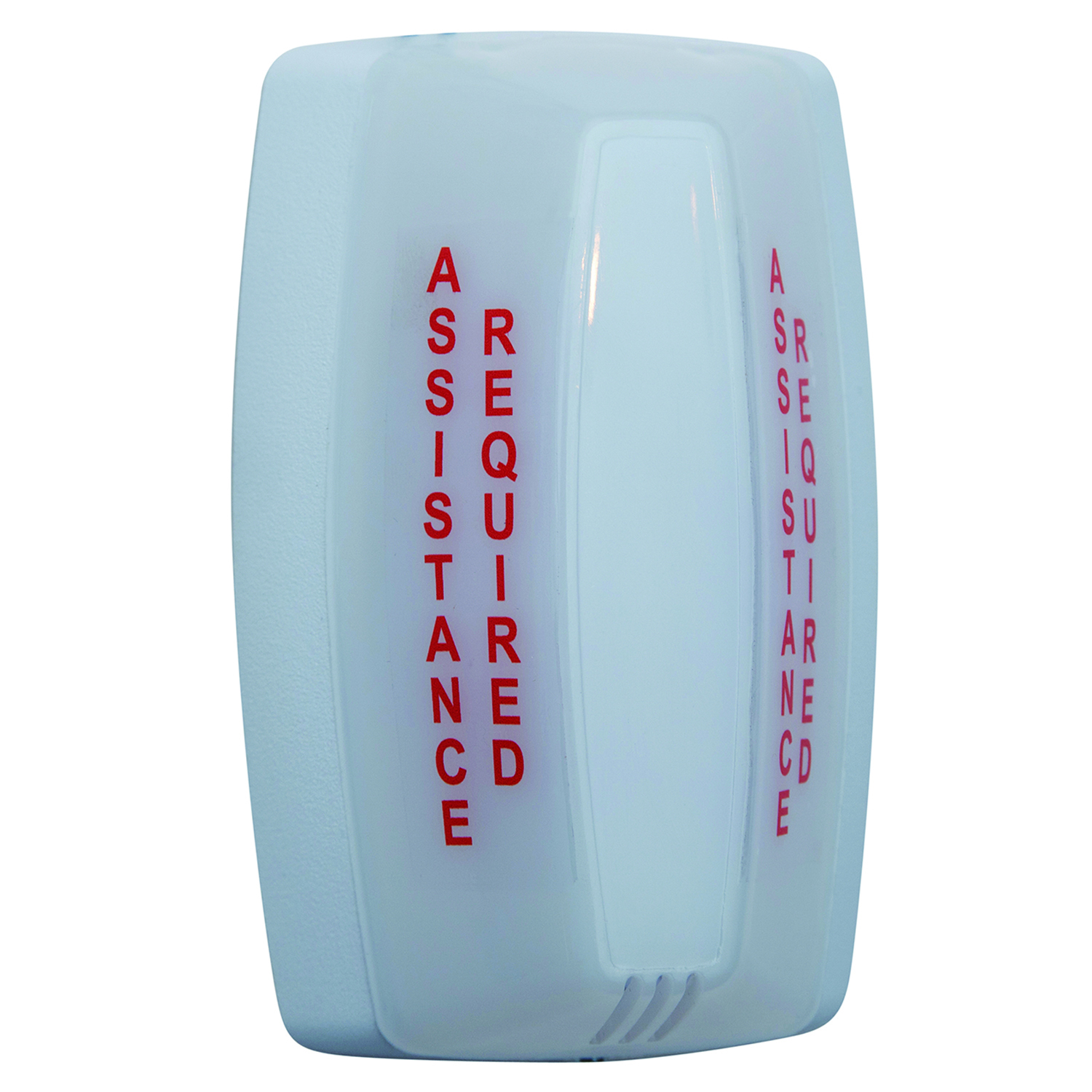

CM-AF140 Series single-gang LED dome lights with adjustable sounder provide critical messaging to building occupants. The weather—and vandal-resistant signal device is designed to provide a highly attractive and unobtrusive appearance in any application while also meeting the latest requirements of the Ontario Building Code for emergency notification in universal restrooms. The dome light lens has ‘Assistance Required’ text in red.

Compare
Add to wishlist
Categories: , Brand:
Description

ITEM EXTENDED DESCRIPTION:
LED Dome Light, w/ Sounder,12/24vAC/DC

SELECTION CODE:
148

SELECTION CODE DESCRIPTION:
148 ANNUNCIATORS

PRODUCT CODE:
DOME LIGHT

PRODUCT CODE DESCRIPTION:
CM-AF140 SERIES

Features:
Compact and elegant one gang design|Impact resistant polycarbonate|Weather resistant, rubber gasket included|’Assistance Required’ text, red. English, French & bilingual available|Adjustable 93db sounder|Super bright LEDs for high visibility even in daylight|Low current draw|3 year warranty



Specifications:

Mounting=In-wall single gang electrical box, optional trim ring included in parts kit|Voltage=12/24V AC/DC|Current Draw=60 mA (max)|Temp Range=32°F – 176°F (0°C – 80°C)|Sounder=Adjustable, 93 db @ 1 meter|Dimensions=4-1/2″H x 3″W x 2″D (114mm x 76.2mm x 51mm)

Manual

CM_AF140_Series-RESOURCE_FILE-manuals-51296_CM_AF141SO_Manual_R1

Reference Guides



CM_AF140_Series-RESOURCE_FILE-referenceguides-51299_Emergency_Call_System_Application_Guide_R3

Specsheets

CM_AF140_Series-RESOURCE_FILE-specsheets-54314_CX_WEC10_Emergency_Call_System_Kit_R6
