CM-9800/7F

OVERVIEW

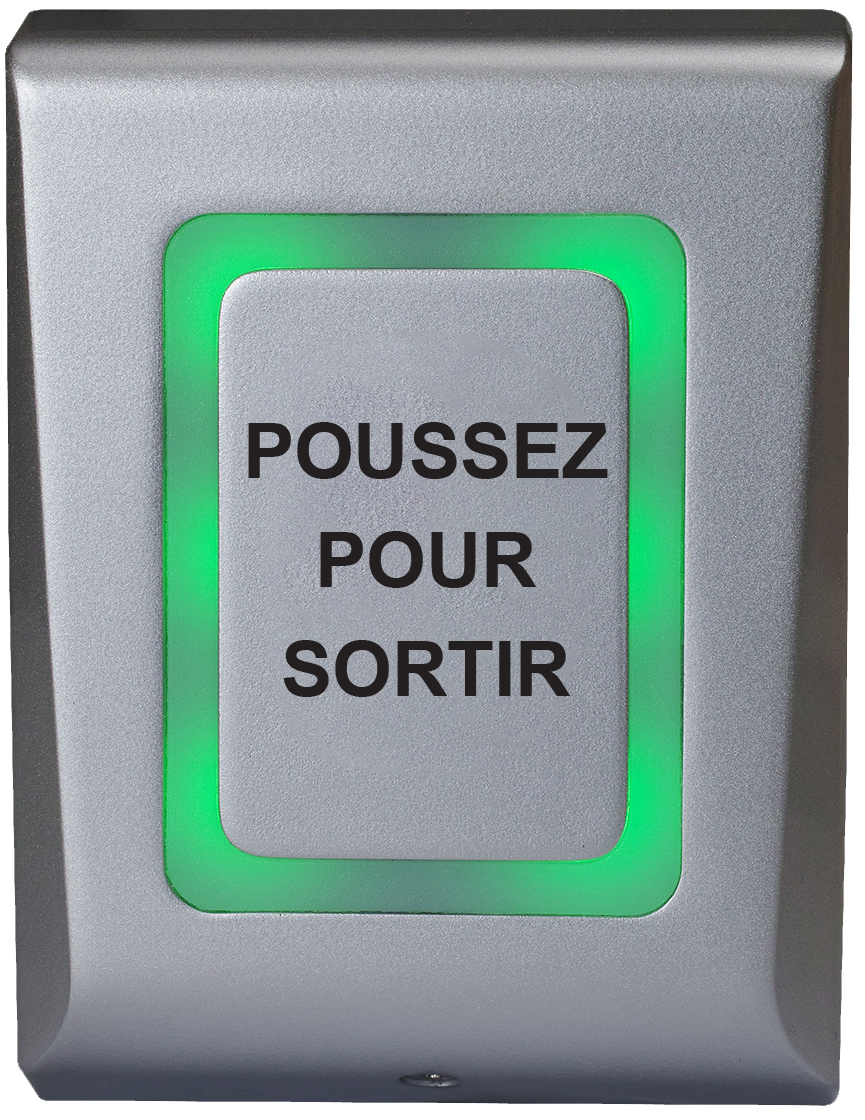

Camden CM-9800/7F surface-mount piezoelectric push/exit switches are IP66-rated and vandal/ weather-resistant. The large activation area provides easy activation with only a light touch, and the large LED light illumination enables the switch to be highly visible in low-light conditions. Adjustable 60 second hold open relay timer and illumination selectable by switch or door status.

Compare
Add to wishlist
Categories: ,
Description

ITEM EXTENDED DESCRIPTION:
2″ Illuminated Surface Piezo Switch,, Poussez Pour Sortir

SELECTION CODE:
311

SELECTION CODE DESCRIPTION:
311 HANDS FREE SWITCHES

PRODUCT CODE:
VANDAL RESISTANT

PRODUCT CODE DESCRIPTION:
CM-9800 SERIES

Features:
Capacitive ‘light touch’ technology. No moving parts|ADA and ROHS Compliant|Weather and vandal resistant. IP 66 rated|Large LED Light Ring, RED, GREEN/ORANGE/NONE|Switch status or door status illumination (External input)|Hold Open relay timer, selectable 0 to 60 seconds|Heavy duty Form ‘C’ relay, rated 2 Amps|Tamper alarm|12/24V, AC/DC



Specifications:

“Input Voltage=12/24V, AC/DC|Current Draw=Max.65mA|Relay Output=2 A @ 24 VDC / 120 VAC|Set Relay Time=0.5 to 60 Seconds or toggle (ON/OFF)|LED Illumination=Red, Green, Orange|LED Control=Yes, by DIP switch|Tamper=Yes|Back Light On/Off=Yes, by DIP switch|Buzzer On/Off=Yes, by DIP switch|Operating Temperature=-4°F to 122°F
(-20°C to 50°C)|Housing=Die-cast aluminum alloy|Protection=IP66|Dimensions=4-9/16″”H x 3-3/8″”W x 13/16″”D
(116mm x 86mm x 21mm)”

Specsheets

CM_9800-RESOURCE_FILE-specsheets-54580_CM_9800_Series_Spec_Sheet_R2
