OVERVIEW

LAZERPOINT RF is a completely new wireless solution for automatic door operators. The system introduces the many advantages of 915MHz spread-spectrum wireless technology to the automatic door market and encompasses the widest range of transmitters, receivers, activation devices, and switch enclosures available today.

Compare
Add to wishlist
Categories: ,
Description

ITEM EXTENDED DESCRIPTION:

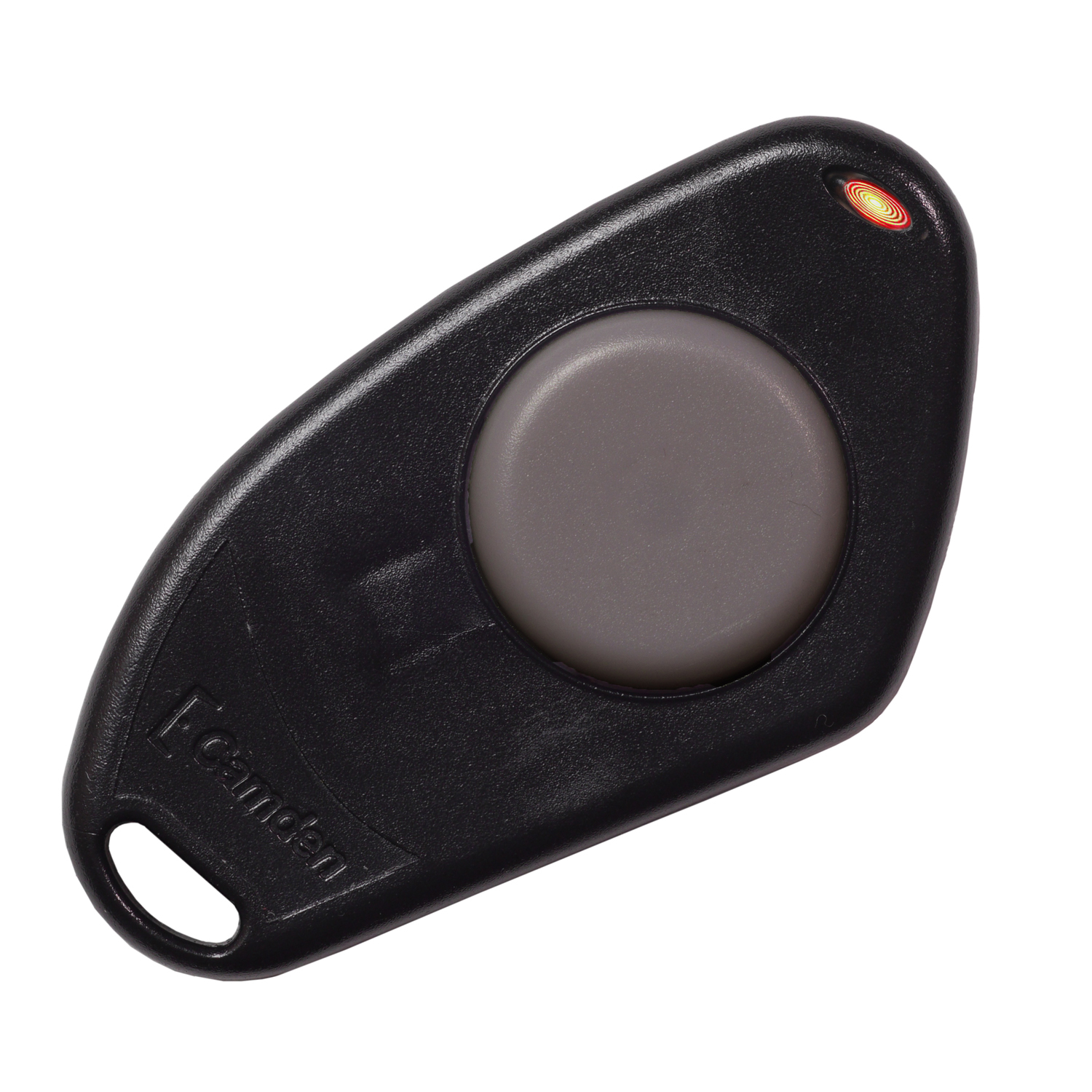

LAZERPOINT RF One Button Key FOB

SELECTION CODE:
380

SELECTION CODE DESCRIPTION:
380 RF WIRELESS

PRODUCT CODE:
LAZERPOINT RF(TM) 915MHZ, WIRELESS SYSTEM

PRODUCT CODE DESCRIPTION:
LAZERPOINT RF(TM) 915MHZ TX & RX

Features:
LAZERPOINT RF™ battery-powered wireless door activation devices are compatible with all automatic door operators.|Advanced 915MHz spread spectrum (broadband) wireless communications for outstanding range and performance.|3 year replacement warranty|Key FOB Transmitters : Compact, water-resistant design|Key FOB Transmitters : Raised button Fob specifically designed for use by persons with a disability (ADA compliant)|Key FOB Transmitters : Up to 250ft. range (open air)

Specifications:
“Wireless Frequency=905.25 / 915.25 / 925.25 MHz. Spread Spectrum|Wireless Range=250ft (76m) open area|Receiver Capacity=40 CM-TX Series Transmitters|Codes=1 Million Unique (20 Bit) Codes|Power/Voltage=CR2032 Lithium battery|Battery Life=115,000 cycles|Status & Alarm Indicators=Transmission confirmation, low battery, battery test & stuck switch|Contact Rating=3 Amps @ 30VDC|Temp Range=Alkaline: 32°F to 122°F (0°C to 50°C)
Lithium: -40°F to 122°F (-40°C to 50°C)”

Manual

Lazerpoint-RESOURCE_FILE-manuals-62097_CM_RX_90_V2_Manual_Eng_Rev3

Reference Guides



Lazerpoint-RESOURCE_FILE-referenceguides-63692_Automatic_Doors_Single_Door_LazerpointTM_Battery_Powered_Wireless_Activation

Specsheets

Lazerpoint-RESOURCE_FILE-specsheets-56034_Lazerpoint_Spec_Sheet_R10

Video
