ITEM EXTENDED DESCRIPTION:

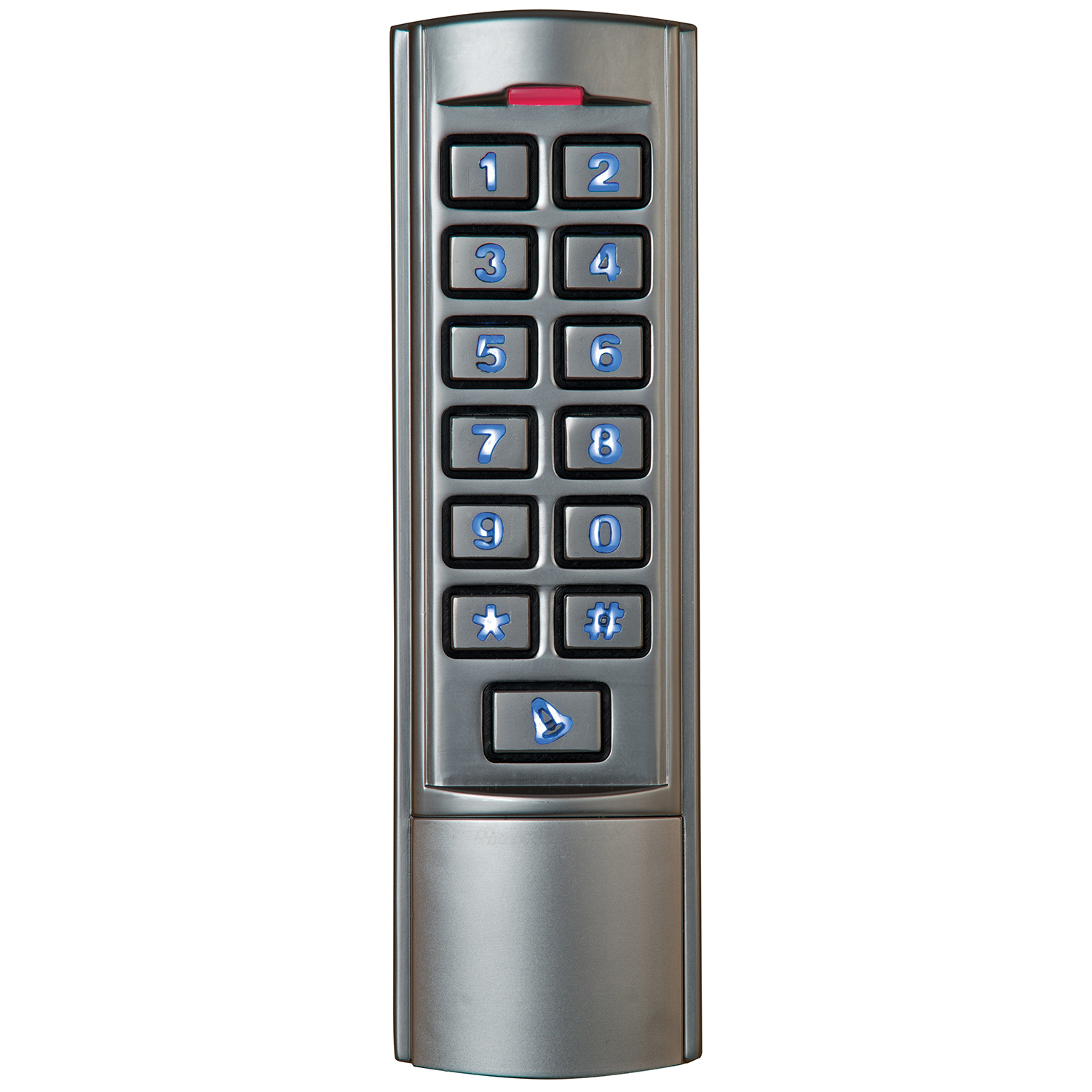

Keypad SMD Multi Function Prox Reader(EM-Format) 2,000 Users
SELECTION CODE:
456
SELECTION CODE DESCRIPTION:
456 KEYPADS
PRODUCT CODE:
WIEGAND, SURFACE MOUNT
PRODUCT CODE DESCRIPTION:

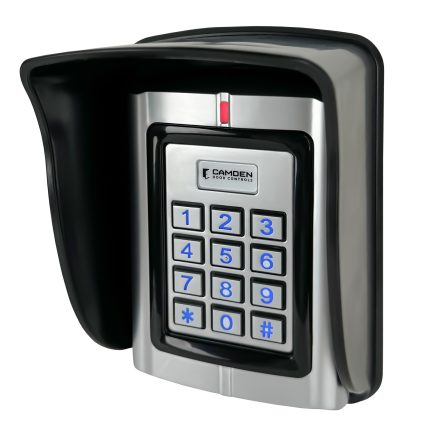

CV-550 & CV-110 SERIES
Features:
Up to 2,000 users – cards or tags|Backlit Keys|Zinc Alloy electroplated anti-vandal construction|Weatherproof, IP68 rating|Fully programming from keypad|Adjustable door output time, alarm time, door open time|Low power consumption|Anti-tampler, built-in light dependent resistor|Look output short circuit protection|8 bit burst (keypad), 26 bit (reader) Wiegand output, for integration with access control systems|3 year warranty
Specifications:
“Voltage=12 VDC|Users=2,000|Reader Format=EM Format|Current Draw=60 mA|Contact Type=(1) Form ‘C’|Contact Rating=3 A @ 30 VDC|Alarm Output=20 mA|Protection=IP68 Rated|Door Delay Time=0 to 99 Seconds|Alarm Time=0 to 3 minutes|Wiegand Interface=8 bit burst for PIN codes
26 bit for cards|Temp Range=-49°F to 140°F
(-45°C to 60°C)|Dimensions=5-7/8″”H x 1-3/4″”W x 1″”D
(150mm x 44mm x 25mm)”
Manual
CM_110_and_CM_550_Series-RESOURCE_FILE-manuals-62515_CM_550SK_V3_Manual_R2
Specsheets
CM_110_and_CM_550_Series-RESOURCE_FILE-specsheets-62785_CM_550SK_Spec_Sheet_R4
