ITEM EXTENDED DESCRIPTION:

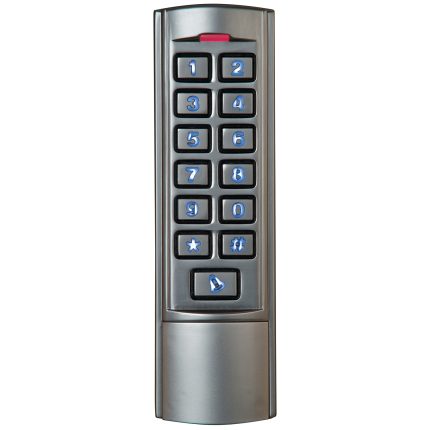

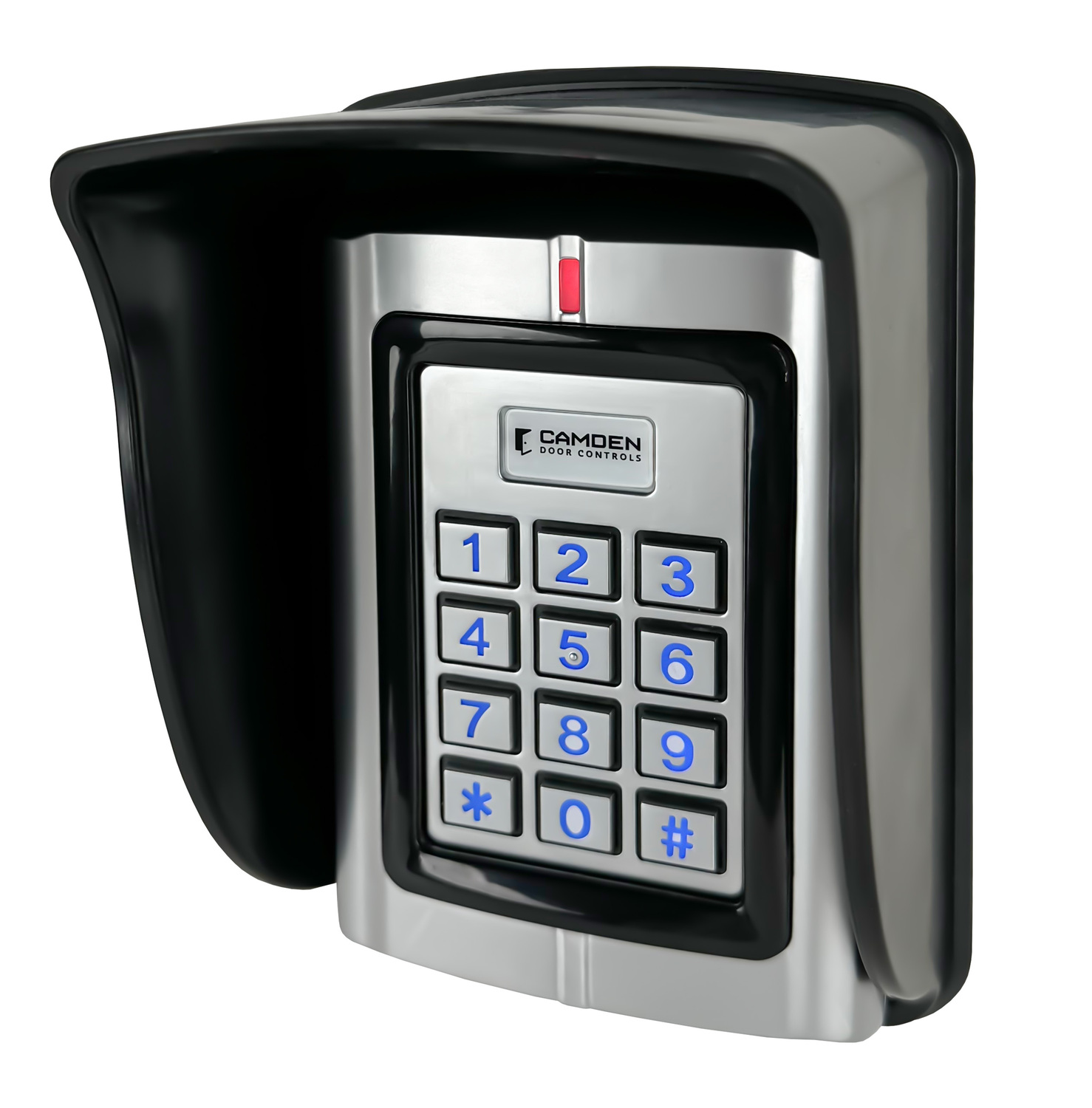

Keypad SMD Stand Alone VR Prox Reader 26-bit 20,000 Users
SELECTION CODE:
456
SELECTION CODE DESCRIPTION:
456 KEYPADS
PRODUCT CODE:
WIEGAND, SURFACE MOUNT
PRODUCT CODE DESCRIPTION:
CV-550 & CV-110 SERIES
Features:
Batch card/tag enrollment|Cast metal, heavy duty construction|Backlit vandal resistant keypad|Weather resistant IP68 rated|Up to 20,000 users – Supports card, PIN, card + PIN (HID 26, 34 and 37 bit, HID and EM format)|4 to 6 digit PIN code length|(1) Form ‘C’ relay output|Tamper alarm output|Request to exit device input|Door contact input|Adjustable door alarm time and door open time|Wiegand output for integration with access control systems|External 26 to 66-bit Wiegand card reader input|3 year warranty
Specifications:
“Voltage=12 VDC +/- 10%|User Codes=20,000|IP Rating=68|Idle Current=25 mA|Contact Type=(1) Form ‘C’|Contact Rating=1 Amp @ 30 VDC|Alarm Output Load=1 Amp @ 30 VDC|Ring Bell Load=1 Amp @ 30 VDC|Card Read Distance=2″” (50mm) max.|Card Frequency=125KHZ, EM and HID|Card Format=22 to 66 Bit Wiegand|Keypad Format=4 Bit, 8 Bit and Virtual Card Number|Temp Range=-49°F to 113°F (-45°C to 55°C)|Dimensions=5-7/8″”H x 4-1/8″”W x 3-1/2″”D
(150mm x 104mm x 90mm – with weather shield)”
Manual
CM_110_and_CM_550_Series-RESOURCE_FILE-manuals-62515_CM_550SK_V3_Manual_R2
Specsheets
CM_110_and_CM_550_Series-RESOURCE_FILE-specsheets-62785_CM_550SK_Spec_Sheet_R4
