CX-247-12
CX-247-12
Back to products
CX-33
CX-33

CX-247-24

OVERVIEW

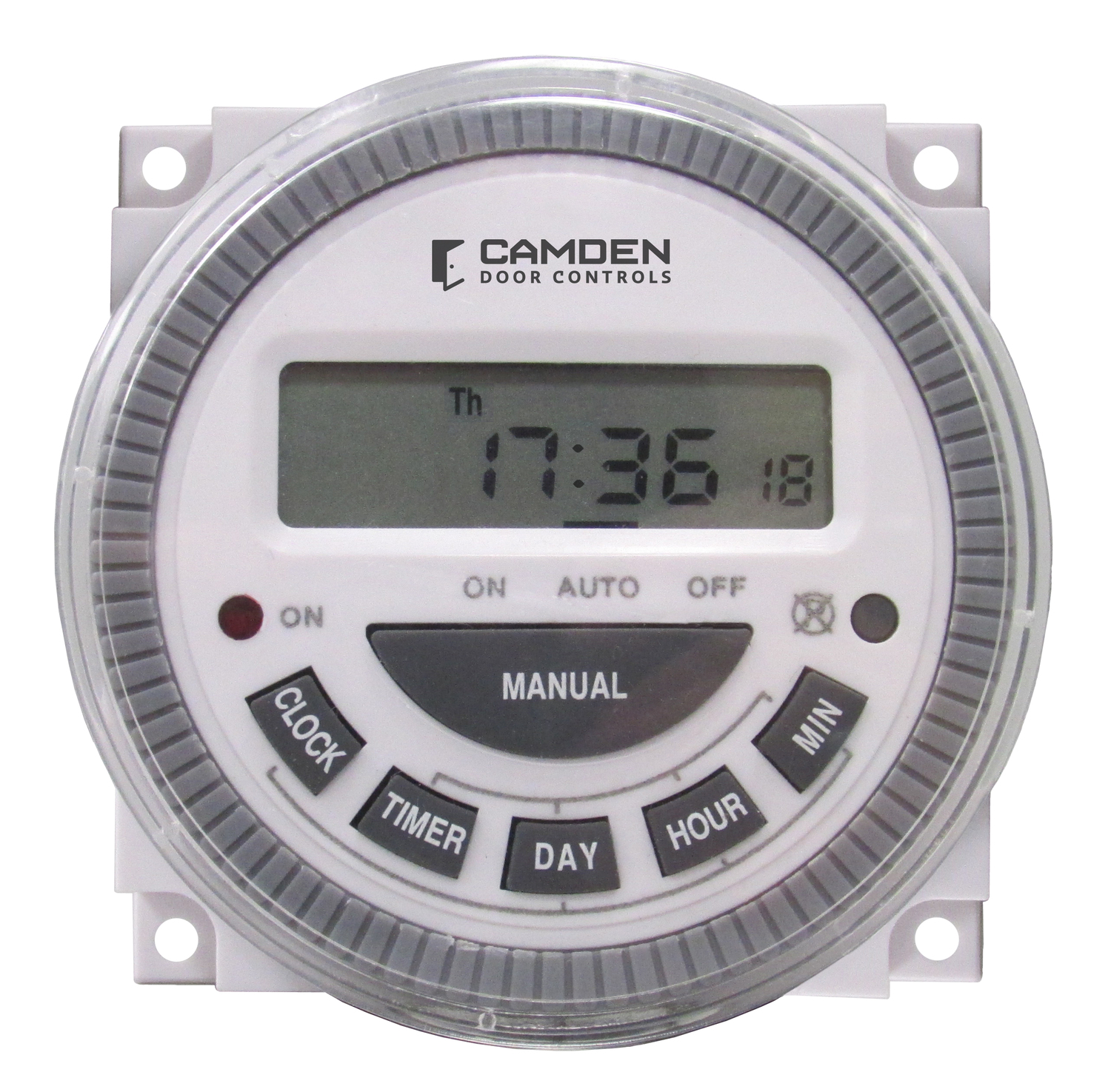

Camden’s CX-247 is an affordable, compact, and easy-to-program 7-day electronic timer designed for use in a wide range of control applications. The unit supports up to 16 ‘on/off’ scheduled times per day.

Compare
Add to wishlist
Categories: , Brand:
Description

ITEM EXTENDED DESCRIPTION:
7 Day Programmable Timer 24v AC/DC

SELECTION CODE:
142

SELECTION CODE DESCRIPTION:
142 ADJUSTABLE TIME DELAYS

PRODUCT CODE:
7 DAY TIMER

PRODUCT CODE DESCRIPTION:
CX-200 SERIES

Features:
15 daily or weekly schedules|Internal memory back-up|Easy to program/setup|Extremely compact size|12 and 24V AC/DC models|SPDT contacts rated 16 amps @ 30 VDC|Dimensions: 2-3/8″ x 2-3/8″ x 1-1/4″|3 year warranty

Specifications:
“Voltage=12V AC/DC or 24V AC/DC|Current Draw=0.1 mA Idle, 10 mA Operating|Response Time=0.3 Seconds|Backup=Internal Permacell|Programs=16|Output=Form ‘C’ (SPDT)|Contact Rating=16 A @ 30 VDC|Electrical Life=250,000 @ Rated Capacity|Dimensions=2-3/8″” x 2-3/8″” x 1-1/4″”
(60mm x 60mm x 32mm)”

Manual

CX_247-RESOURCE_FILE-manuals-62770_CX_247_Manual_Rev10_Eng

Reference Guides



CX_247-RESOURCE_FILE-referenceguides-52832_Special_Purpose_Products_Cross_Reference

Specsheets

CX_247-RESOURCE_FILE-specsheets-66764_CX_247_Spec_Sheet_R6
