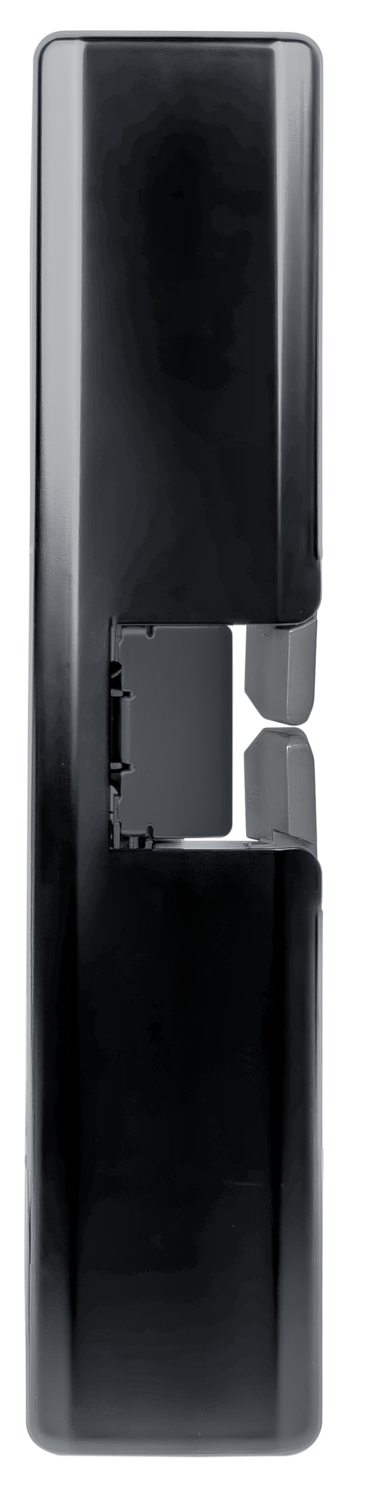

CX-EPD1299L-BK
CX-EPD1299L-BK
Back to products
CX-PS13V3
CX-PS13V3

CX-IRB

OVERVIEW

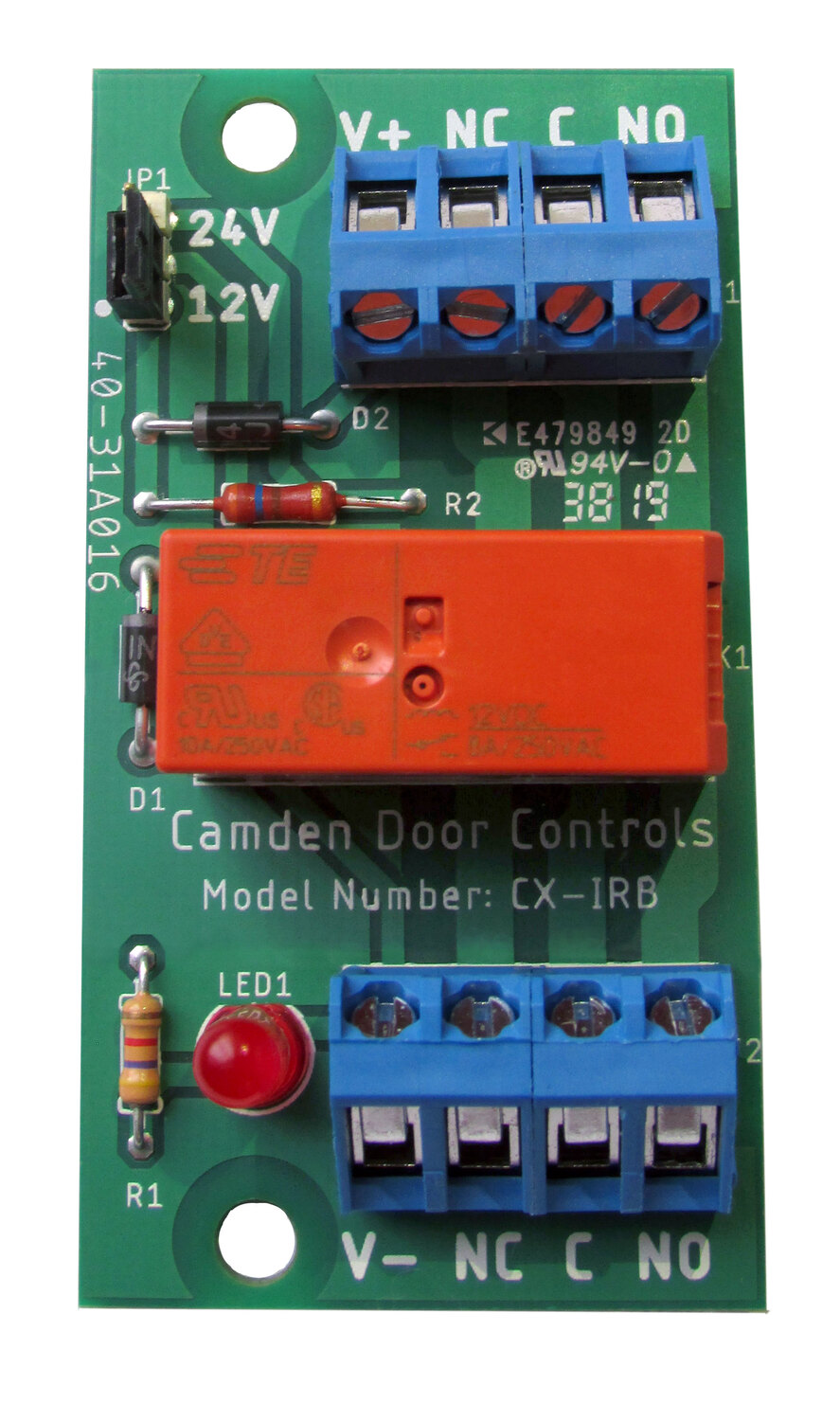

Camden’s CX-IRB Isolation Relay Module provides a compact and economical solution for isolation of devices from electrical noise and induced voltages.

Compare
Add to wishlist
Categories: , Brand:
Description

ITEM EXTENDED DESCRIPTION:
Isolation Relay Module, (1) DPDT

SELECTION CODE:
140

SELECTION CODE DESCRIPTION:
140 DOOR CONTROL RELAYS

PRODUCT CODE:
ISOLATION RELAY

PRODUCT CODE DESCRIPTION:
CX-IRB SERIES

Features:
Ultra Compact Design fits anywhere, including Automatic Door Operator or Power Supply Cabinets|Selectable 12/24V DC|Low Power Consumption|DPDT Relay Contacts, rated 8 Amps|LED Provides Relay Activation Status|Self-adhesive Velcro™ tape is provided for easy mounting|3 Year Warranty

Specifications:
Voltage=12/24V DC|Current Draw=40mA @ 12V/24 VDC|Contact Rating=8 amps @ 30 VDC/120 VAC|Contact Type=DPDT|Status=Red LED (Activated when on)|Temperature=-40°F to 158°F (-40°C to 70°C)|Dimensions=3/4″ H x 1 1/2″ W x 2 3/4″ L (20mm x 38mm x 70mm)

Manual

CX_IRB-RESOURCE_FILE-manuals-62034_CX_IRB_Manual

Specsheets

CX_IRB-RESOURCE_FILE-specsheets-54486_CX_IRB_Isolation_Relay
