CM-336/42W
CM-336/42W
Back to products
CM-35/4
CM-35/4

CM-336/44R

OVERVIEW

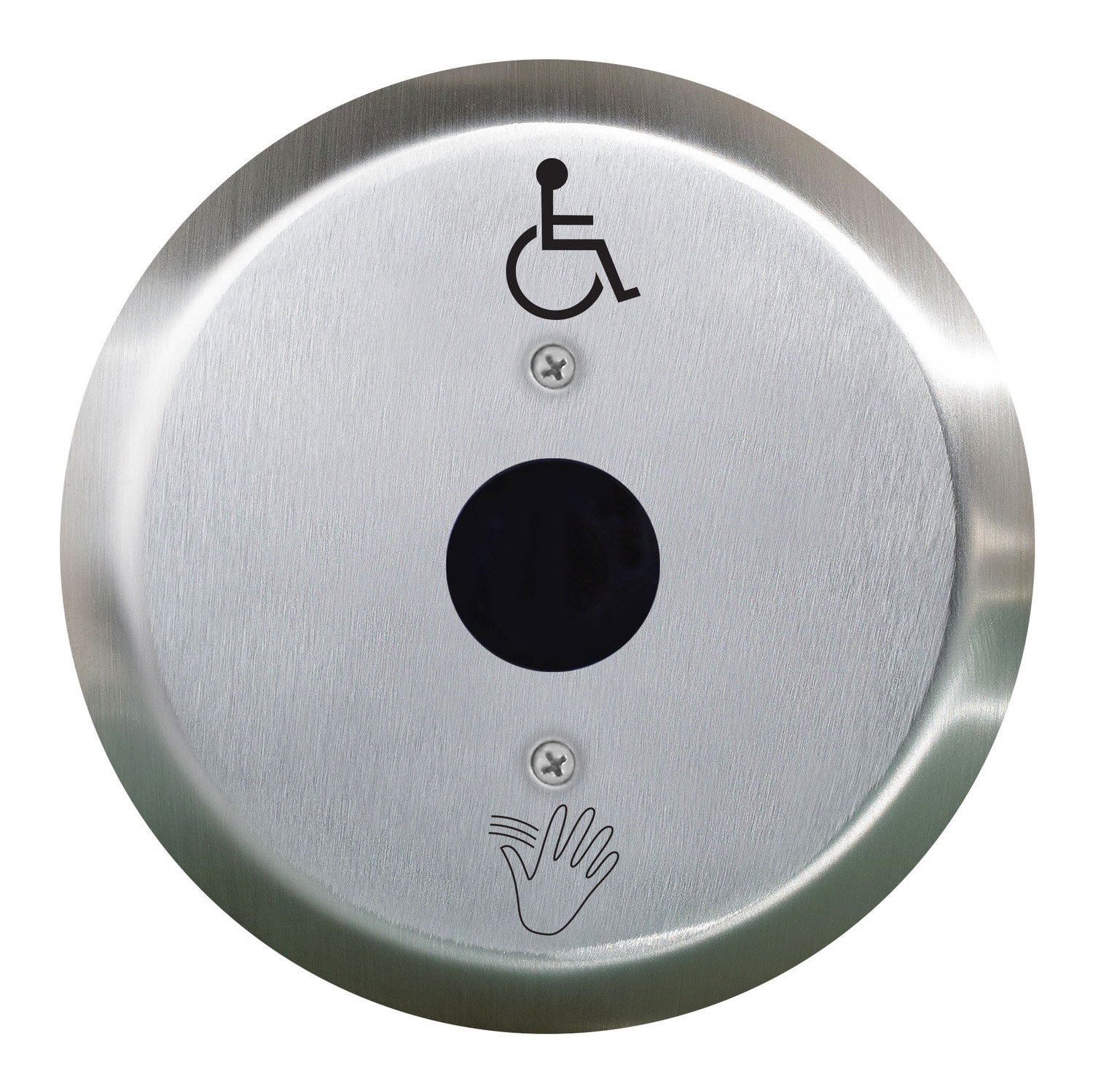

Camden Touchless SUREWAVE CM-336 Series battery powered switches,12/24V AC/DC. Ideal for door activation where installing wiring is difficult or expensive. CM-RX-90 receiver required.

Compare
Add to wishlist
Categories: ,
Description

ITEM EXTENDED DESCRIPTION:
SUREWAVE Touchless Sw. Wireless Bat. Pwrd. 6″, SS, Hand/WC

SELECTION CODE:
305

SELECTION CODE DESCRIPTION:
305 HANDS FREE SWITCHES

PRODUCT CODE:
SUREWAVE(TM) SWITCHES

PRODUCT CODE DESCRIPTION:
CM-336 SERIES

Features:
Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC), gasket included|Advanced active infra-red technology with fast response|Heavy duty relay contacts|Adjustable operating range up to 28″, refer to model specification|Adjustable time delay, refer to model specifcation|Selectable fail safe/fail secure operation|Lazerpoint(tm) compatible wireless hands-free switch offers the longest battery life using common alkaline batteries



Specifications:

“Technology=Active Infra-red, utilizing microburst sensing technology|Voltage=12-24V AC/DC|Wireless=Built-In|Wireless Frequency=915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless|Battery=(2) ‘AA’ alkaline 32ºF to +122º F (0ºC to +50º C)
(2) ‘AA’ Lithium Batteries (optional) -40ºF to +122º F (-40ºC to +50º C)|Battery Life=Lithium: 4 years with 100 activations per day
Alkaline: 2 years with 100 activations per day|Adjustable Operating Range=1″”-12″” (25mm-304mm)|Time Delay=3-30 Seconds|Operation=Selectable Fail Safe/Fail Secure|Motion Sensing Modes=Momentary, Momentary with Alarm, Maintained|Relay Operating Modes=Event|Input=REX, Door Contact”

Manual

CM_331_332_333_336_324_325_Series-RESOURCE_FILE-manuals-66162_CM_331_CM_332_Manual_R5

Reference Guides



CM_331_332_333_336_324_325_Series-RESOURCE_FILE-referenceguides-64479_1_2_2_6_Battery_Powered_Wireless_and_Touchless_Activation

Specsheets

CM_331_332_333_336_324_325_Series-RESOURCE_FILE-specsheets-62632_CM_336_Spec_Sheet_R1



Video
