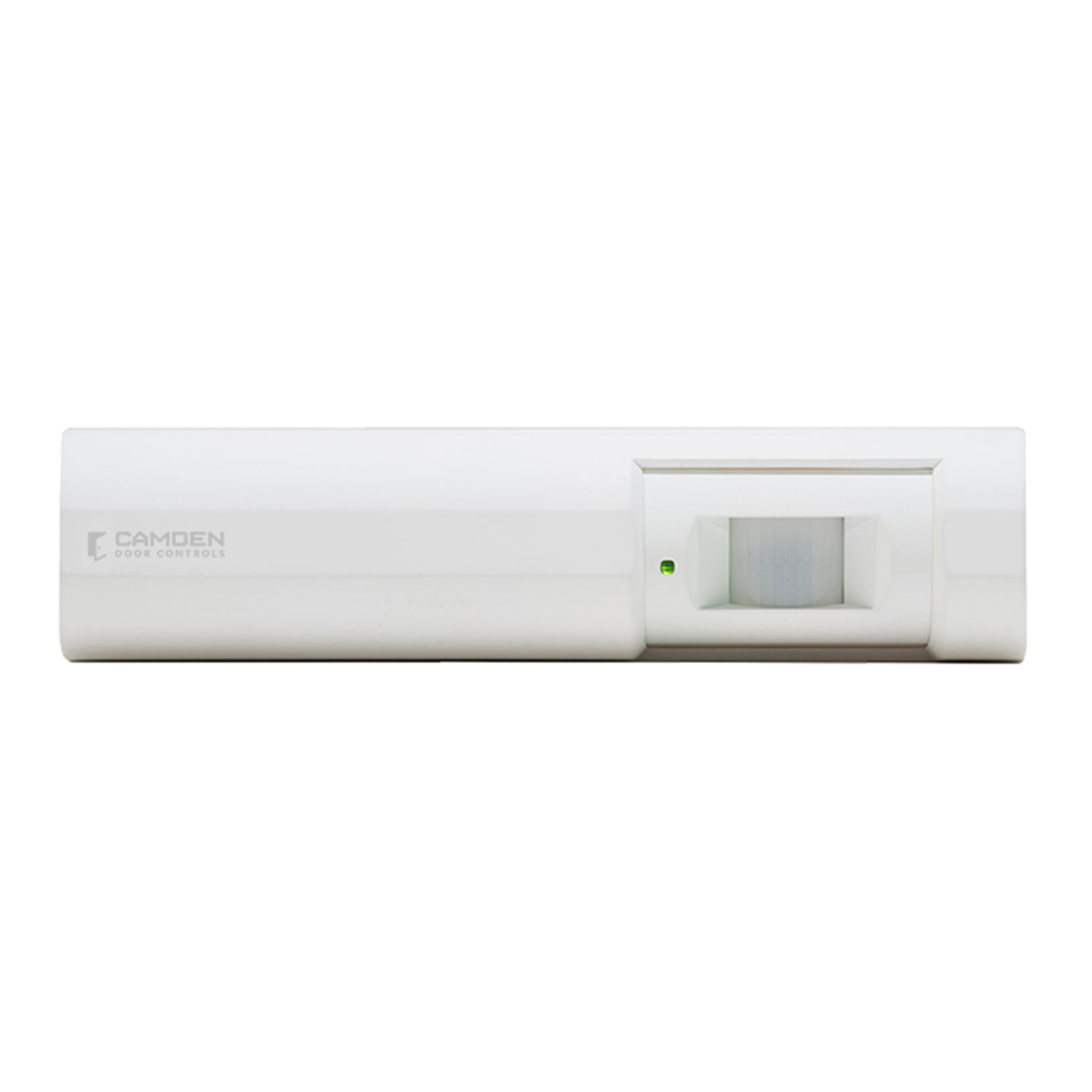

CM-RQE70A

ITEM EXTENDED DESCRIPTION:
PIR REX Sensor WH 2 Form C DPDT 12/24vDC Contacts & W/Term

SELECTION CODE:
332

SELECTION CODE DESCRIPTION:
332 DETECTORS

PRODUCT CODE:
PIR DETECTOR

PRODUCT CODE DESCRIPTION:
CM-RQE70 SERIES

Features:
Compact size, designed to mount on door frames|Easy to use on-board programming buttons. No dip switches|(4) Factory default operating modes, with the ability to customize mode attributes|Selectable fail safe/fail secure|(2) Form ‘C’ contacts|Momentary and latching relay modes|Secondary activation device input|Card/keypad input|Door position switch input|Request to Exit input|Built-in sounder (adjustable)|Tamper switch

Specifications:
“Voltage=12/24 VDC Operation|Current Draw=50 mA (Max)|Relays=(2) Form ‘C’ (DPDT)|Contact Rating=3 A @ 30 VDC|Programming=On-board push buttons and status LED|Modes=(4) Factory Default
(1) Fully Custom
Selectable Fail Safe/Fail Secure|Coverage=Max. 10’W x 10’H
Horizontal and Vertical Adjustment (Mechanical)
Sensor Sensitivity/Range (Electronic)|Time Delay=Adjustable, 5, 15, 30, 45 & 60 second|Sounder=ON/OFF, with Adjustable Volume|Piezo Buzzer=92 db. @ 10cm|Indicator=Activation LED|Card or Keypad Input=(1) N/O|Door Position Switch Input=(1) N/O|Request to Exit Input=(1) N/O|Tamper Switch Contact Rating=50 mA 12 VDC|Temp Operating Range=32°F-120°F (0-50°C)|Humidity Range=0- 93% Non-Condensing|Dimensions=1-3/4″”H x 7″”W X 1-3/4″”D
(43mm x 176mm x 43mm)|Weight=0.25 Lbs. (0.12 Kg.)|Colors=White or Black Models”
