ITEM EXTENDED DESCRIPTION:

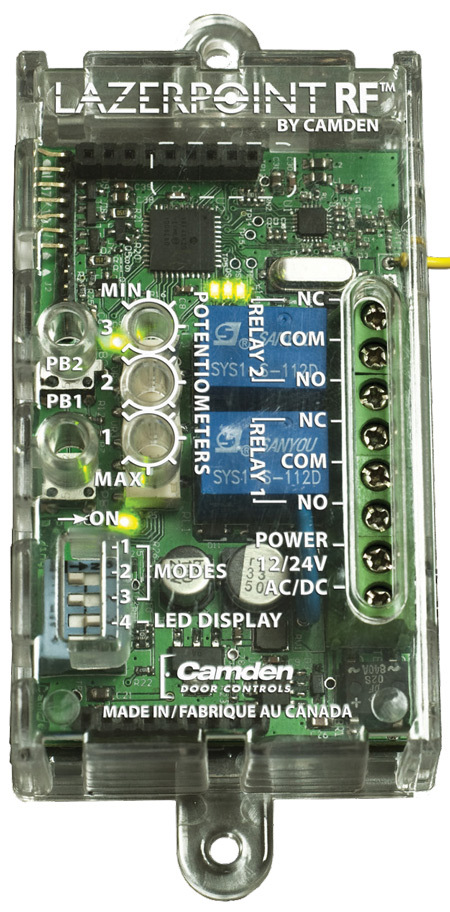

LAZERPOINT RF Full Function Dual Relay Receiver
SELECTION CODE:
380
SELECTION CODE DESCRIPTION:
380 RF WIRELESS
PRODUCT CODE:
LAZERPOINT RF(TM) 915MHZ, WIRELESS SYSTEM
PRODUCT CODE DESCRIPTION:
LAZERPOINT RF(TM) 915MHZ TX & RX
Features:
LAZERPOINT RF⢠battery-powered wireless door activation devices are compatible with all automatic door operators.|Advanced 915MHz spread spectrum (broadband) wireless communications for outstanding range and performance.|3 year replacement warranty|Receivers : Ultra-compact receiver can be mounted in door operator cabinets.|Receivers : ‘Push and Learn’ transmitter enrollment and signal strength indicator.|Receivers : Supports up to 40 Lazerpoint(tm) transmitters|Receivers : Two-channel wireless with 2 relay outputs and 6 operating modes
Specifications:
“Wireless Frequency=905.25 / 915.25 / 925.25 MHz. Spread Spectrum|Receiver Capacity=40 CM-TX Series Transmitters|Codes=1 Million Unique (20 Bit) Codes|Power/Voltage=12/24 V, AC/DC|Status & Alarm Indicators=Relay status, signal strength, erase mode & pot position|Output=(2) SPDT relays, 6 modes|Contact Rating=3 Amps @ 30VDC|Time Delay=#1 D.O.R. 1-30 sec.
#2 D.O.O. 1-15 sec.
#2 D.O.R. 1-30 sec.|Temp Range=Alkaline: 32°F to 122°F (0°C to 50°C)
Lithium: -40°F to 122°F (-40°C to 50°C)”
Manual
Lazerpoint-RESOURCE_FILE-manuals-62097_CM_RX_90_V2_Manual_Eng_Rev3
Reference Guides
Specsheets
Lazerpoint-RESOURCE_FILE-specsheets-56034_Lazerpoint_Spec_Sheet_R10
