CV-WTX2-H26
CV-WTX2-H26

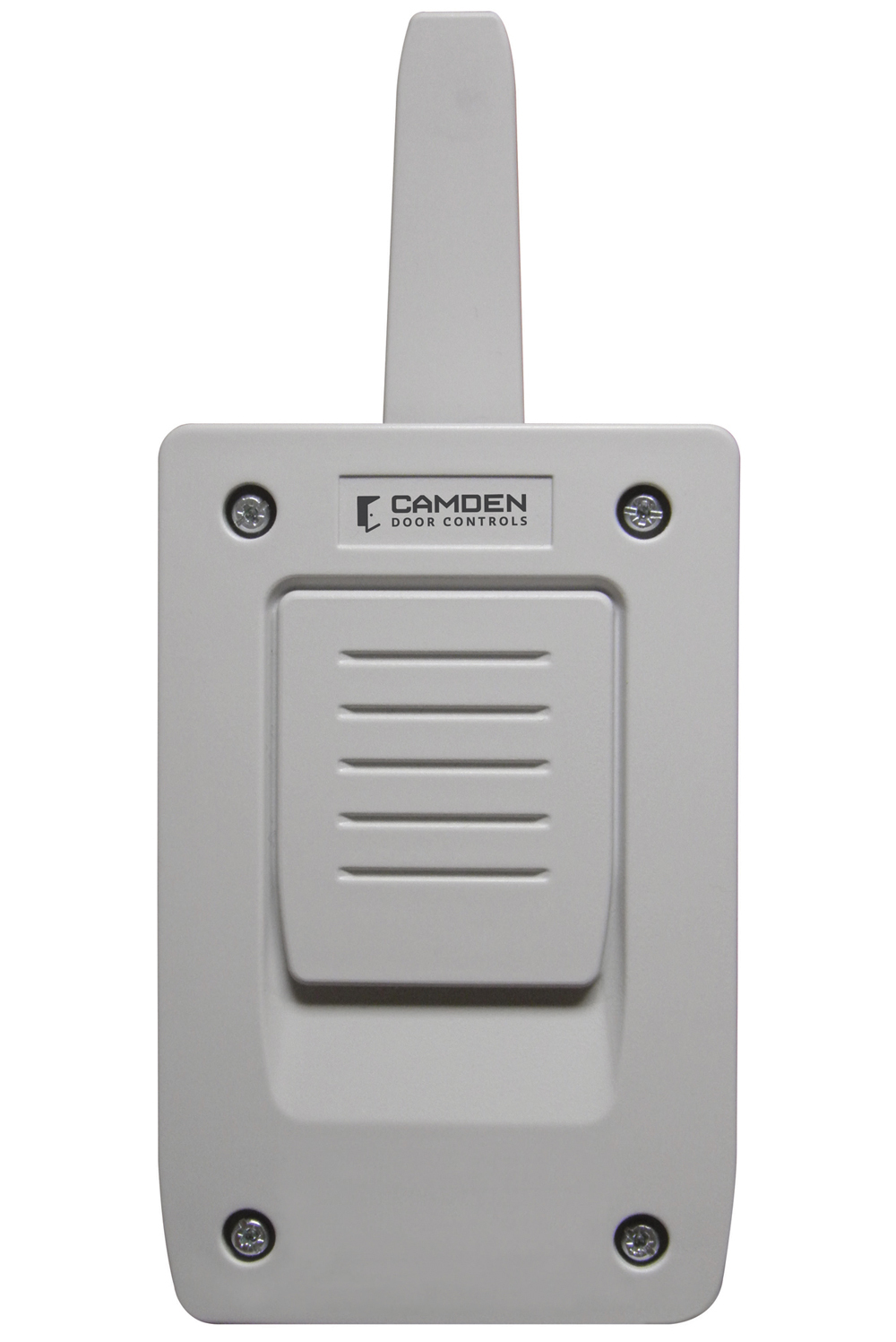

CV-WRX4

OVERVIEW

Camden’s Wiegand receivers are designed to interface with existing access control systems for both long and short access applications. Pressing one of two buttons, users can control a barrier gate or overhead door up to 300ft. (100m) away. The same transmitter can be presented in front of a card reader, and operate as a conventional access credential. Identical 26-bit Wiegand ID numbers will be sent for both buttons and for the reader to manage multiple users in the access control database.

Compare
Add to wishlist
Categories: ,
Description

ITEM EXTENDED DESCRIPTION:
Prox Receiver Wiegand Four Channel

SELECTION CODE:
726

SELECTION CODE DESCRIPTION:
726 WEIGAND WIRELESS

PRODUCT CODE:
868 MHz WIRELESS SYSTEM

PRODUCT CODE DESCRIPTION:
CV-W SERIES

Features:
“CV-WRX4 : Common 26-bit Wiegand output for all outputs
Field selectable facility codes, 1 to 255|CV-WRX4 : High security rolling code, 19 trillion combinations|CV-WRX4 : Weather and vandal resistant enclosure|CV-WRX4 : 4 channel receiver facilitates in/out control|All Transmitters : LED indicator for low battery and signal transmission|All Transmitters : 2 year battery life|All Transmitters : Laser etched ID numbers”

Specifications:
Input Voltage=12 VDC|Current=14mA typical / 36mA peak|Frequency=868.35 Mhz.|IP Rating=CV: IP54 (IP65 with cable plug installed)|Operating Temp.=-4°F to 185°F (-20°C to 85°C)|Dimensions=3-1/4″W x 7-3/8″H x 1-5/8″D (82mm x 187mm x 42mm)

Manual

CV_WR_Series-RESOURCE_FILE-manuals-61288_CV_WRX4_Manual_R1

Specsheets

CV_WR_Series-RESOURCE_FILE-manuals-61288_CV_WRX4_Manual_R1

Video
