OVERVIEW

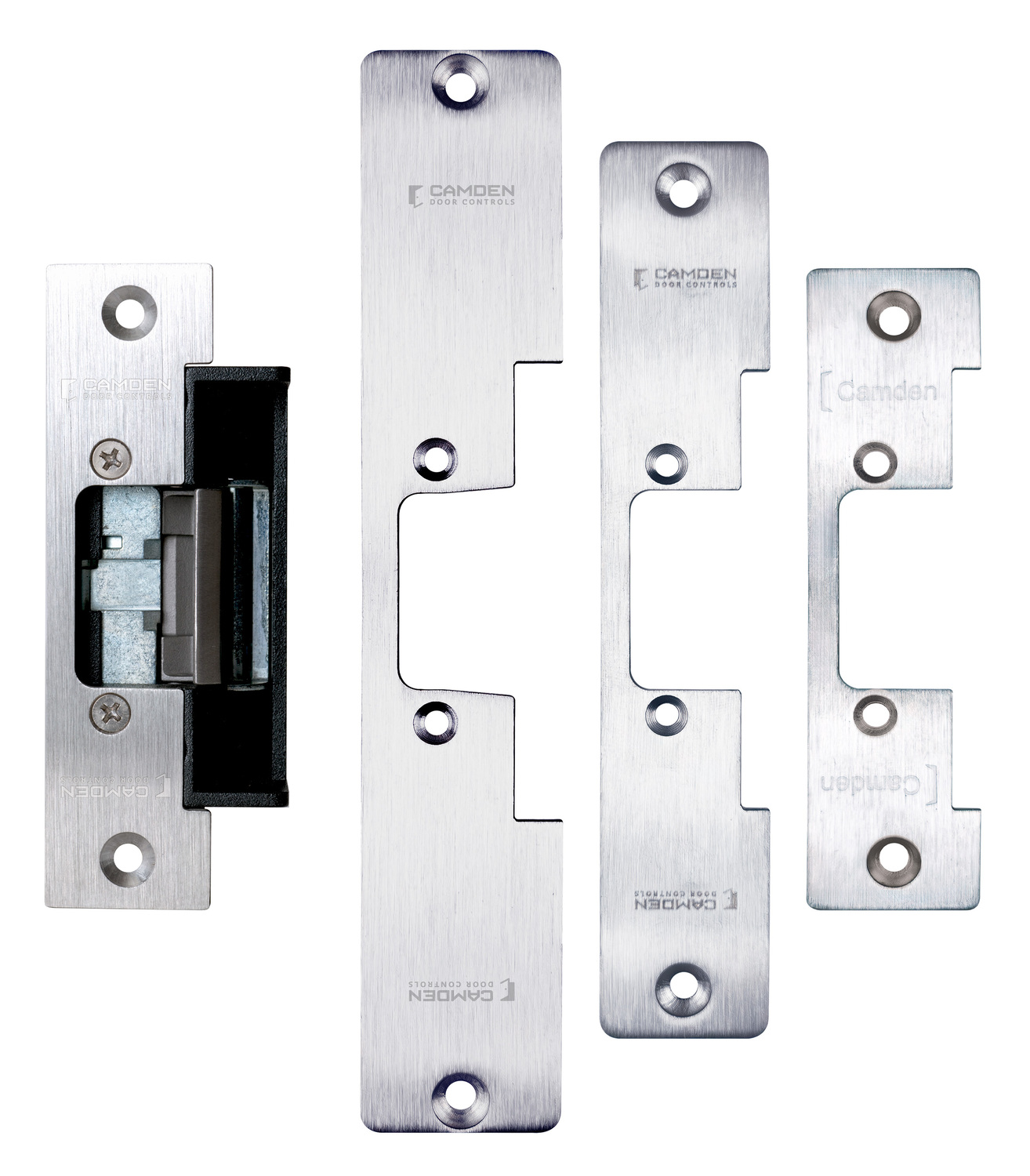

Camden CX-ED2079 low profile ‘Universal’ grade 2 ‘ANSI’ electric strikes for cylindrical locksets also provide great value with (3) faceplates, selectable 12/24V AC/DC voltage, fail safe / fail secure operation and horizontal adjustment of the strike body. UL 1034 Burglary Listed.

Compare
Add to wishlist
Category: Brand:
Description

ITEM EXTENDED DESCRIPTION:
ANSI Strike, Low Profile. Grade 2 w/3 Faceplates, 5/8″Throw

SELECTION CODE:
104

SELECTION CODE DESCRIPTION:
104 ELECTRIC STRIKES

PRODUCT CODE:
ANSI GRADE 2

PRODUCT CODE DESCRIPTION:
2000 SERIES

Features:
BHMA/ANSI A156.31, Grade 1 certified (CX-ED2079 Series)|Centerline latch entry for cylindrical locksets, 1/2″ to 5/8″ latch projection|Selectable fail safe/fail secure operation|Horizontal adjustibility of strike body|Low profile strike body|5 year warranty|(3) Stainless steel faceplates included

Specifications:
“Voltage=12/24V AC/DC|Current Draw=300 mA @ 12 VDC,150 mA @ 24 VDC|Static Strength=1000 Lbs.|Dynamic Strength=50 Ft. Lbs.|Endurance=700,000 (Factory Tested)
500,000 cycles (UL Verified)|Mode=Selectable fail safe
fail secure|Operation=AC – Buzz
DC- Silent|Duty=Continuous|Mounting=Non-handed|Dimensions=4-7/8″”H x 1-7/8″”W x 1-7/32″”D
(124mm x 47mm x 31mm)”

Manual

CX_ED2071_ED2079-RESOURCE_FILE-manuals-67213_CX_ED2079_Manual_R7

Reference Guides



CX_ED2071_ED2079-RESOURCE_FILE-referenceguides-66065_Electric_Strike_Selection_Guide_R5

Specsheets

CX_ED2071_ED2079-RESOURCE_FILE-specsheets-67211_CX_ED2071_2079_Spec_Sheet_R7
