OVERVIEW

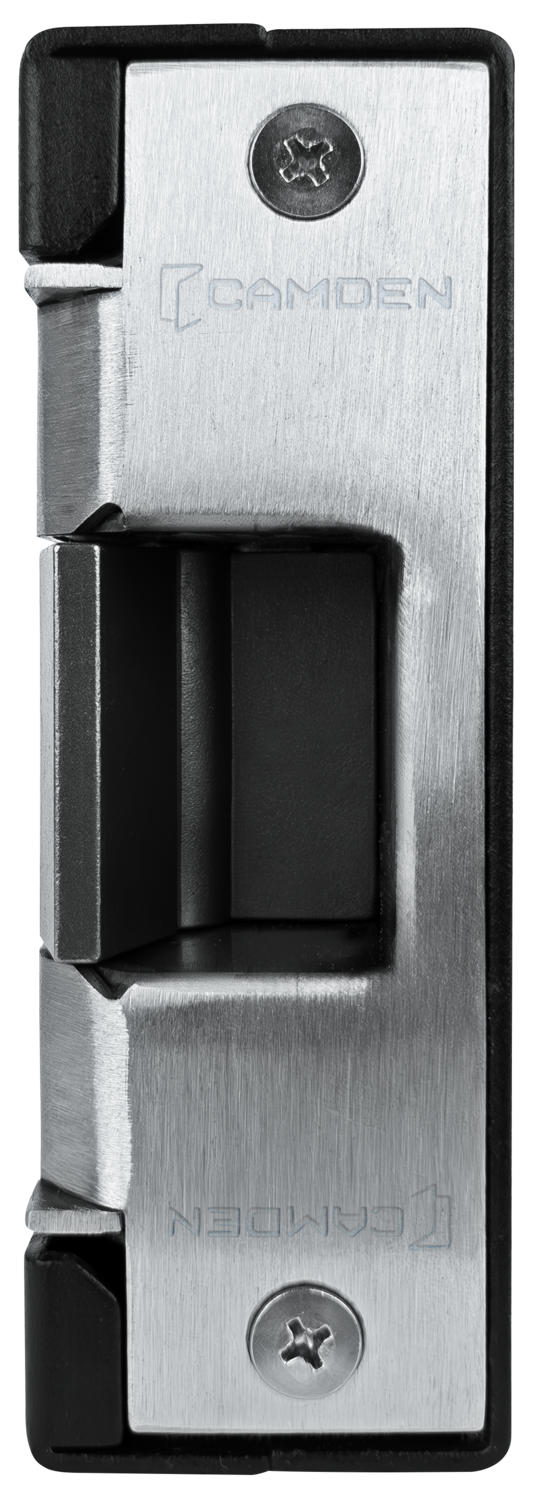

Camden CX-ED1959RM-MB outdoor-rated strikes are compatible with RIM exit devices. These heavy-duty strikes feature stainless steel construction with an integrated ANSI square faceplate and Grade 1 performance. CX-ED1959 Series models include a heavy gauge painted steel mounting box at no additional charge.

Compare
Add to wishlist
Category:
Description

ITEM EXTENDED DESCRIPTION:
Outdoor (Gate) Strike, for RIM exit devices, w/mounting box

SELECTION CODE:
112

SELECTION CODE DESCRIPTION:
112 ELECTRIC STRIKES

PRODUCT CODE:
OUTDOOR RATED STRIKES

PRODUCT CODE DESCRIPTION:
1900 SERIES

Features:
BHMA/ANSI A156.31, Grade 1 certified|Grade 1 strike for exterior doors and gates|7/8″ latch projection|Selectable 12/24 VDC|Selectable fail safe/fail secure operation|Integrated ANSI square faceplate|Heavy-duty stainless steel construction|Metal mounting box included|Easy fit connectors|5-year warranty|Designed for RIM exit devices

Specifications:
“Voltage=12/24 VDC|Current Draw=280mA / 140mA|Static Strength=1,500 lbs.|Dynamic Strength=70 ft-lbs|Endurance=1,000,000 Cycles (Factory Tested)
500,00 Cycles (UL Certified)|Latch Operating=1-9/16″” x 7/8″”
(40mm x 22mm)|Modes=Selectable Fail Safe / Fail Secure|Duty=Continuous|Dimensions=4-7/8″” x 1-5/8″” x 1-5/8″”
(124mm x 42mm x 42mm)”

Manual

CX_ED1959_Series-RESOURCE_FILE-manuals-67203_CX_ED1959_Manual_R1

Reference Guides



CX_ED1959_Series-RESOURCE_FILE-referenceguides-66269_CX_ED1959_Marking_Template_1_1

Specsheets

CX_ED1959_Series-RESOURCE_FILE-specsheets-67193_CX_ED1959_Series_Spec_Sheet_R4
