ITEM EXTENDED DESCRIPTION:

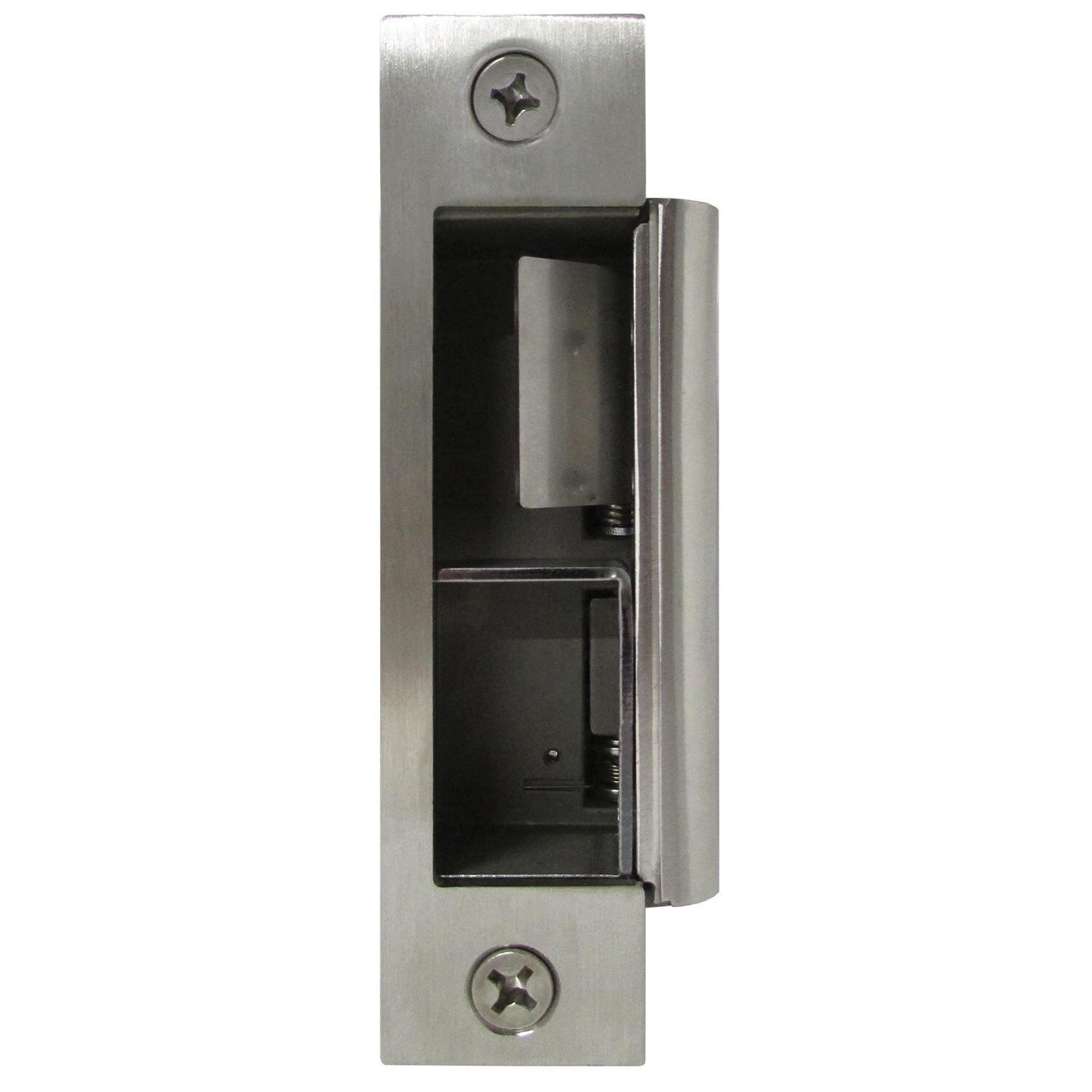

Mortise Strike Grade 1 Fire Rated w/ 5 faceplates
SELECTION CODE:
108
SELECTION CODE DESCRIPTION:
108 ELECTRIC STRIKES
PRODUCT CODE:
MORTISE GRADE 1
PRODUCT CODE DESCRIPTION:
1500/1600/1700 SERIES
Features:
BHMA/ANSI A156.31, Grade 1 certified|For mortise and cylindrical locksets|3/4″ (19mm) latch projection (throw)|5 stainless steel faceplates included|Selectable fail safe/fail secure operation|Selectable 12/24V AC/DC|Latch monitoring|Non-Handed, LH/RH|Easy Fit connectors for power and monitoring wires|Stainless steel strike body|5 year warranty
Specifications:
“Voltage=12/24V AC/DC|Current Draw=260 mA @ 12V AC/DC
150 mA @ 24V AC/DC|Static Strength=1,500 Lbs.|Dynamic Strength=70 Ft-Lbs.|Mode=Fail-Safe/Fail-Secure, Field Selectable|Operation=AC – Buzz
DC – Silent|Duty=Continuous (DC)|Mounting=Non-Handed|Endurance=1,500,000 Cycles (Factory Tested)
500,000 Cycles (Ul Verified)|Fire Rating=UL10C/Can4-S104
3 hour (fail secure only)|Latch Bolt Monitor=SPDT, 100 mA @ 24 VDC|Dimensions=4-7/8″”H x 1-5/8″”W x 1-3/4″”D
(124mm x 41mm x 45mm)”
