OVERVIEW

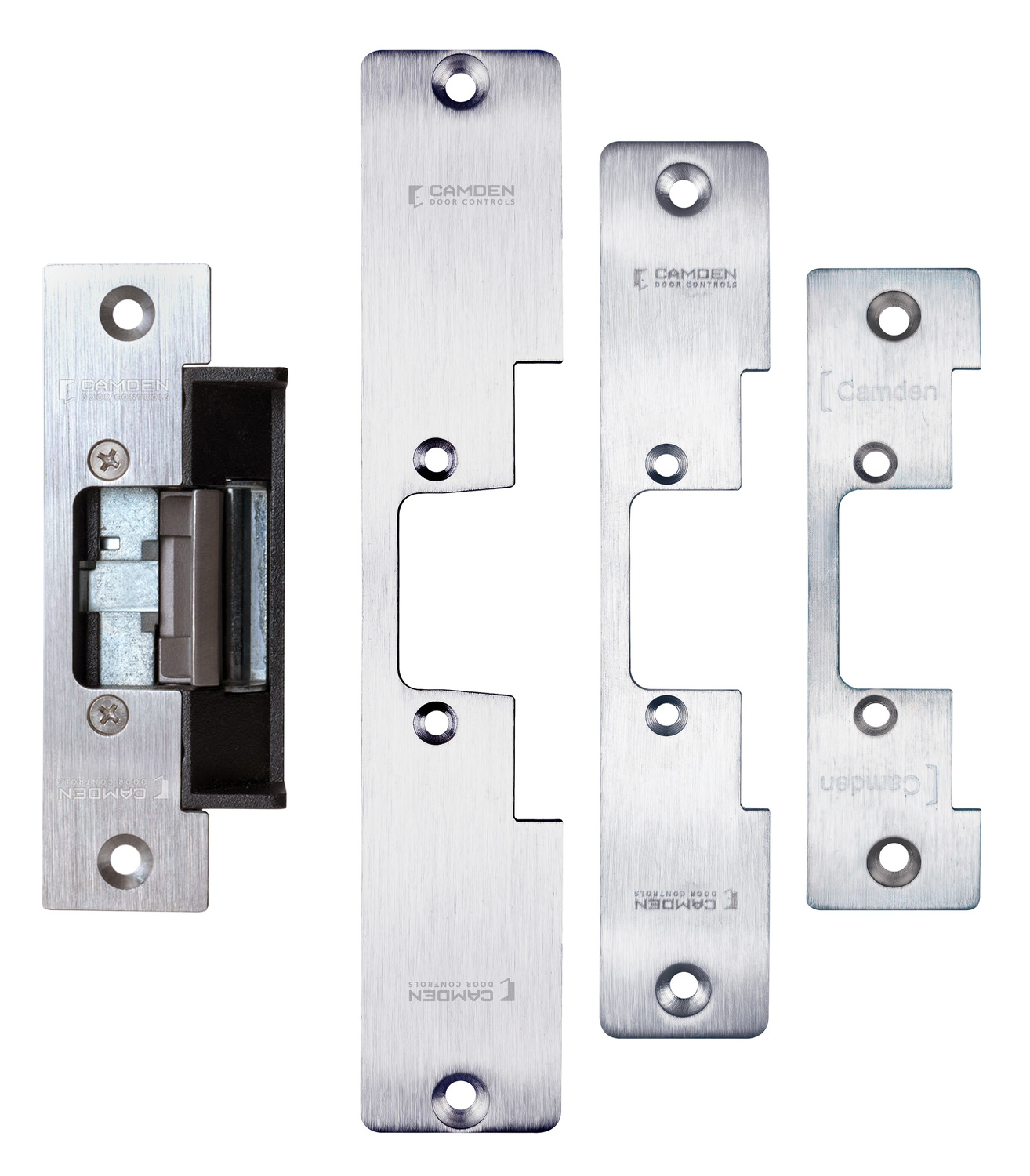

Camden CX-ED1079L Low Profile ‘Universal‘ grade 1 ANSI strikes with latch monitoring and 5/8″ latch projection offer ‘universal‘ performance with selectable 12/24V AC/DC and fail safe/fail secure operation, and have horizontal faceplate/body adjustment.

Compare
Add to wishlist
Category: Brand:
Description

ITEM EXTENDED DESCRIPTION:
ANSI Strike Low Profile w/Latch Monitor & 3 FP, 5/8″Throw

SELECTION CODE:
100

SELECTION CODE DESCRIPTION:
100 ELECTRIC STRIKES

PRODUCT CODE:
ANSI GRADE 1

PRODUCT CODE DESCRIPTION:
1000 SERIES

Features:
BHMA/ANSI A156.31, Grade 1 certified|Centerline latch entry for cylindrical locksets|Adjustable strike body|Selectable 12/24V AC/DC|Selectable fail safe/fail secure operation|3 stainless steel faceplates included|Horizontal adjustability of strike faceplate/body|Non-handed|Easy fit connectors for power & monitoring wires|Trim plate included|Continuous duty operation|5 year warranty|Low Profile strike with latch monitoring

Specifications:
“Voltage=12/24V AC/DC|Current Draw=260 mA @ 12 VDC
150 mA @ 24 VDC|Static Strength=1,500 Lbs.|Dynamic Strength=70 Ft-Lbs.|Endurance=1,000,000 cycles (Factory Tested)
500,000 cycles (UL Verified)|Mode=Selectable fail safe
fail secure|Operation=AC – Buzz
DC- Silent|Duty=Continuous|Latch Monitor=Yes”

Manual

CX_ED1079_Series-RESOURCE_FILE-manuals-67216_CX_ED1079_Series_Manual_R8

Reference Guides



CX_ED1079_Series-RESOURCE_FILE-referenceguides-66062_Electric_Strike_Selection_Guide_R5

Specsheets

CX_ED1079_Series-RESOURCE_FILE-specsheets-67214_CX_ED1079L_Spec_Sheet_R4
