OVERVIEW

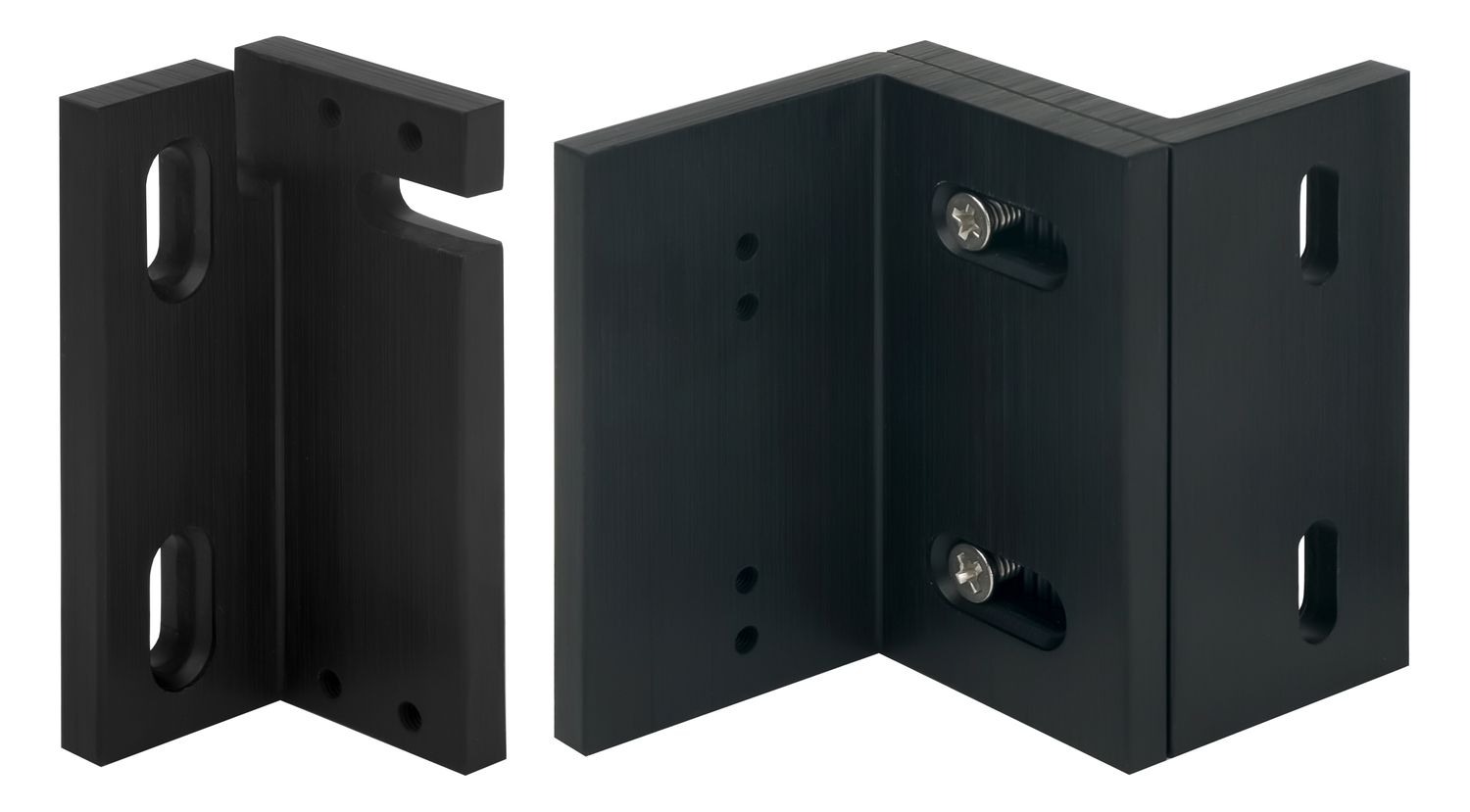

Camden’s CX-CL-LZBRK professional grade brackets provide an ideal solution for mounting CX-EPD0009 cabinet locks on in swinging, single doors. Designed for attaching the magnet to the door frame’s face when header space is unavailable.

Compare
Add to wishlist
Category:
Description

ITEM EXTENDED DESCRIPTION:
Magnetic Cabinet Lock L&Z Bracket

SELECTION CODE:
114

SELECTION CODE DESCRIPTION:
114 CABINET LOCKS

PRODUCT CODE:
MAGNETIC CABINET LOCKS

PRODUCT CODE DESCRIPTION:
09 SERIES

Features:
High-Quality Camden accessory designed for CX-EPD0009 magnetic cabinet lock

Specifications:
“Power Input=12 / 24 VDC|Current Draw=60mA @ 12VDC, 110mA @ 24VDC|Endurance=250,000 Cycles|Static Strength=440 lbs. (200 kg) Holding Force|Preload=5 lbs. (2.3 kg)|Temperature Rating=-4°F to 140°F (-20°C to 60°C)|Operation Mode=Fail-Safe|Installation Options=Front Mount, Side Mount|Dimensions*=2-1/2″”H x 27/32″”W x 1-1/4″”D
(64mm x 21.5mm x 31.6mm)
*Dimensions are of assembled product”

Manual

CX_EPD0009-RESOURCE_FILE-manuals-66899_CX_EPD0009_L_Z_Bracket_Manual_R1

Reference Guides



CX_EPD0009-RESOURCE_FILE-referenceguides-64106_3_3_1_1_Cabinet_Locking_System_Retail_Refrigeration_Unit

Specsheets

CX_EPD0009-RESOURCE_FILE-specsheets-66029_CX_EPD0009_Spec_Sheet_R2
