ITEM EXTENDED DESCRIPTION:

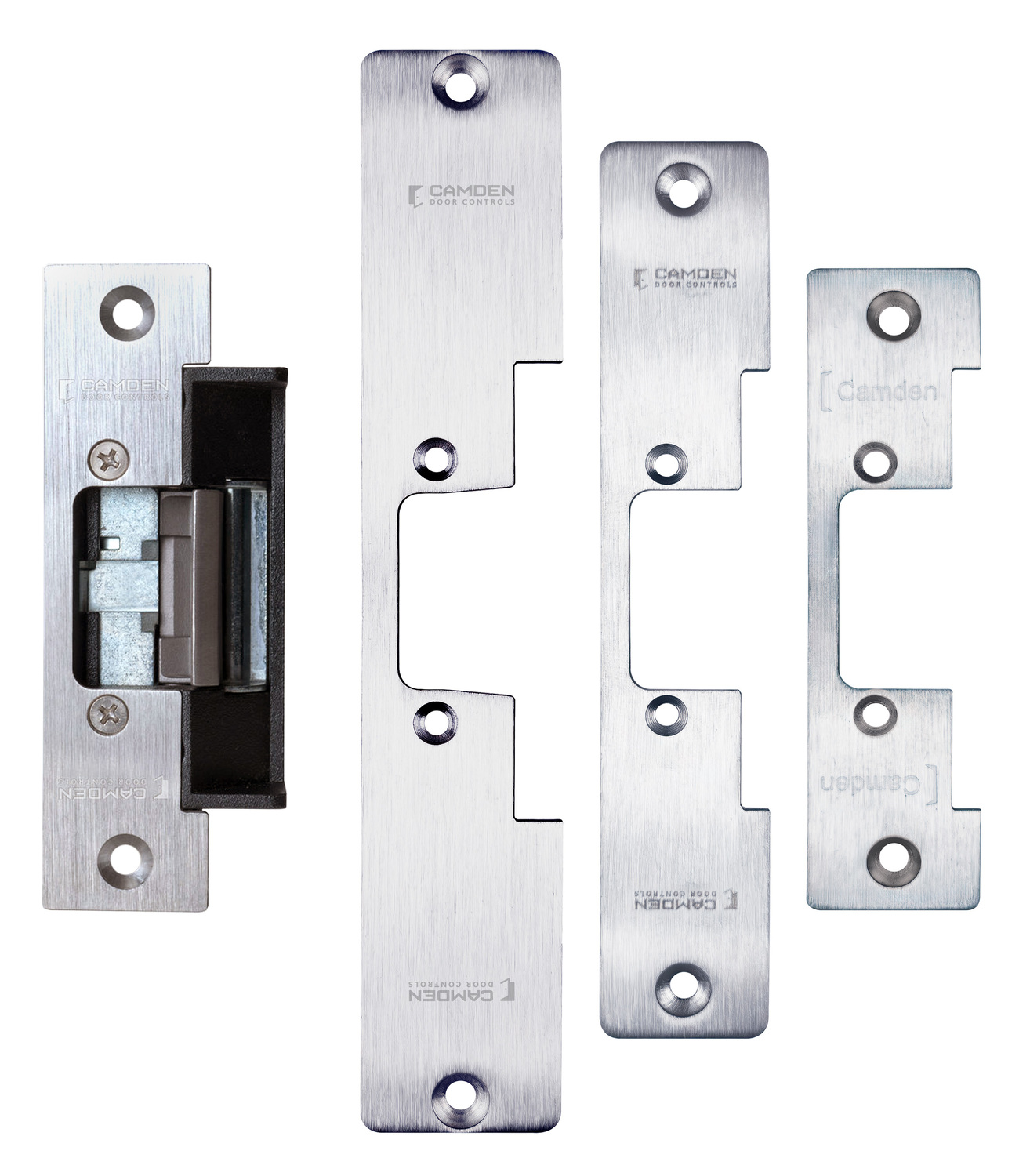

ANSI Strike Grade 1 Low Profile. w/3 Faceplates, 5/8″Throw
SELECTION CODE:
100
SELECTION CODE DESCRIPTION:
100 ELECTRIC STRIKES
PRODUCT CODE:
ANSI GRADE 1
PRODUCT CODE DESCRIPTION:
1000 SERIES
Features:
BHMA/ANSI A156.31, Grade 1 certified|Centerline latch entry for cylindrical locksets|Adjustable strike body|Selectable 12/24V AC/DC|Selectable fail safe/fail secure operation|3 stainless steel faceplates included|Horizontal adjustability of strike faceplate/body|Non-handed|Easy fit connectors for power & monitoring wires|Trim plate included|Continuous duty operation|5 year warranty|Low profile. 1/2″ to 5/8″ latch projection (throw)
Specifications:
“Voltage=12/24V AC/DC|Current Draw=260 mA @ 12 VDC
150 mA @ 24 VDC|Static Strength=1,500 Lbs.|Dynamic Strength=70 Ft-Lbs.|Endurance=1,000,000 cycles (Factory Tested)
500,000 cycles (UL Verified)|Mode=Selectable fail safe
fail secure|Operation=AC – Buzz
DC- Silent|Duty=Continuous|Latch Monitor=Yes|Dimensions=4-7/8″”H x 1-7/8″”W x 1-7/32″”D
(124mm x 47mm x 31mm)”
Manual
CX_ED1079_Series-RESOURCE_FILE-manuals-67216_CX_ED1079_Series_Manual_R8
Reference Guides
CX_ED1079_Series-RESOURCE_FILE-referenceguides-66062_Electric_Strike_Selection_Guide_R5
Specsheets
CX_ED1079_Series-RESOURCE_FILE-specsheets-67214_CX_ED1079L_Spec_Sheet_R4
