CX-ED0010

ITEM EXTENDED DESCRIPTION:

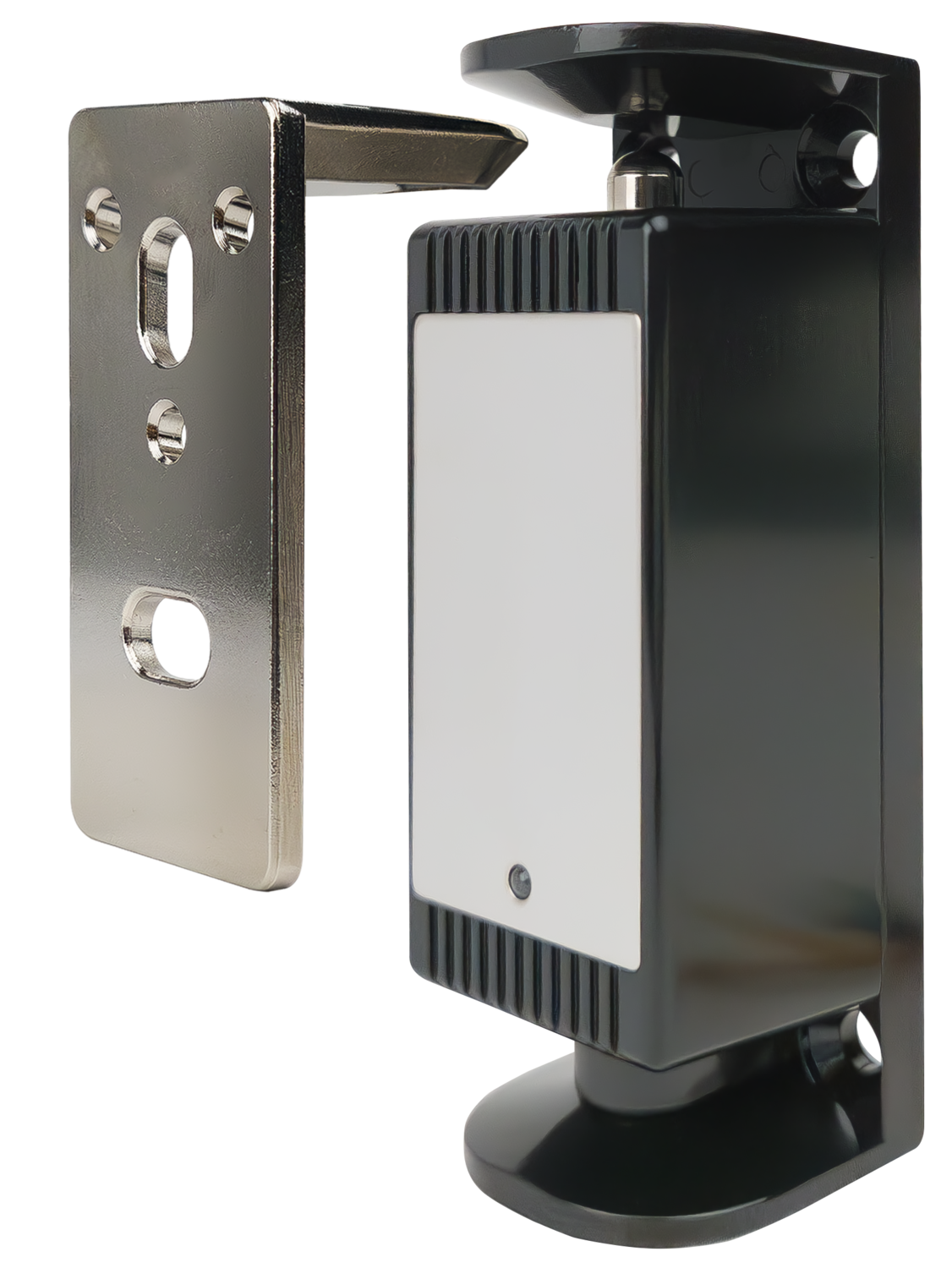

Magnetic Cabinet Lock Fail Safe/Secure

SELECTION CODE:
114

SELECTION CODE DESCRIPTION:
115 ELECTROMECHANICAL CABINET LOCKS

PRODUCT CODE:
MAGNETIC CABINET LOCKS

PRODUCT CODE DESCRIPTION:
10 SERIES

Features:
Front mounting for use with office drawers, display cabinets, etc.|Field selectable fail-safe or fail secure operation|440 lbs. (200kg) holding force|Strike plate adjusts to door alignment|Door and lock status sensors

Specifications:
“Power Input=12 / 24 VDC|Current Draw=280mA @ 12VDC, 140mA @ 24VDC|Door Status Sensor=200mA @ 30VDC (Max) Form ‘C’|Lock Status Sensor=1A @ 30V DC (Max)|Endurance=250,000 Cycles|Static Strength=440 lbs. (200 kg) Holding Force|Temperature Rating=-4°F to 140°F (-20°C to 60°C)|Operation Mode=Field Selectable Fail-Safe or Fail-Secure|Installation Options=Front Mount|Dimensions=LOCK BODY:
3-5/16″”H x 1-3/16″”W x 1-1/8″”D
(84mm x 30mm x 28mm)

STRIKE PLATE:
2-1/2″”H x 27/32″”W x 1-1/4″”D
(64mm x 21.5mm x 31.6mm)”

Manual

CX_ED0010-RESOURCE_FILE-manuals-63730_CX_ED0010_Electromechanical_Cabinet_Lock_Manual_FR

Reference Guides

CX_ED0010-RESOURCE_FILE-referenceguides-63803_Camden_Cabinet_Lock_Solutions

Specsheets

CX_ED0010-RESOURCE_FILE-specsheets-63874_CX_ED0010_Spec_Sheet
