CX-ED1689L-4

OVERVIEW

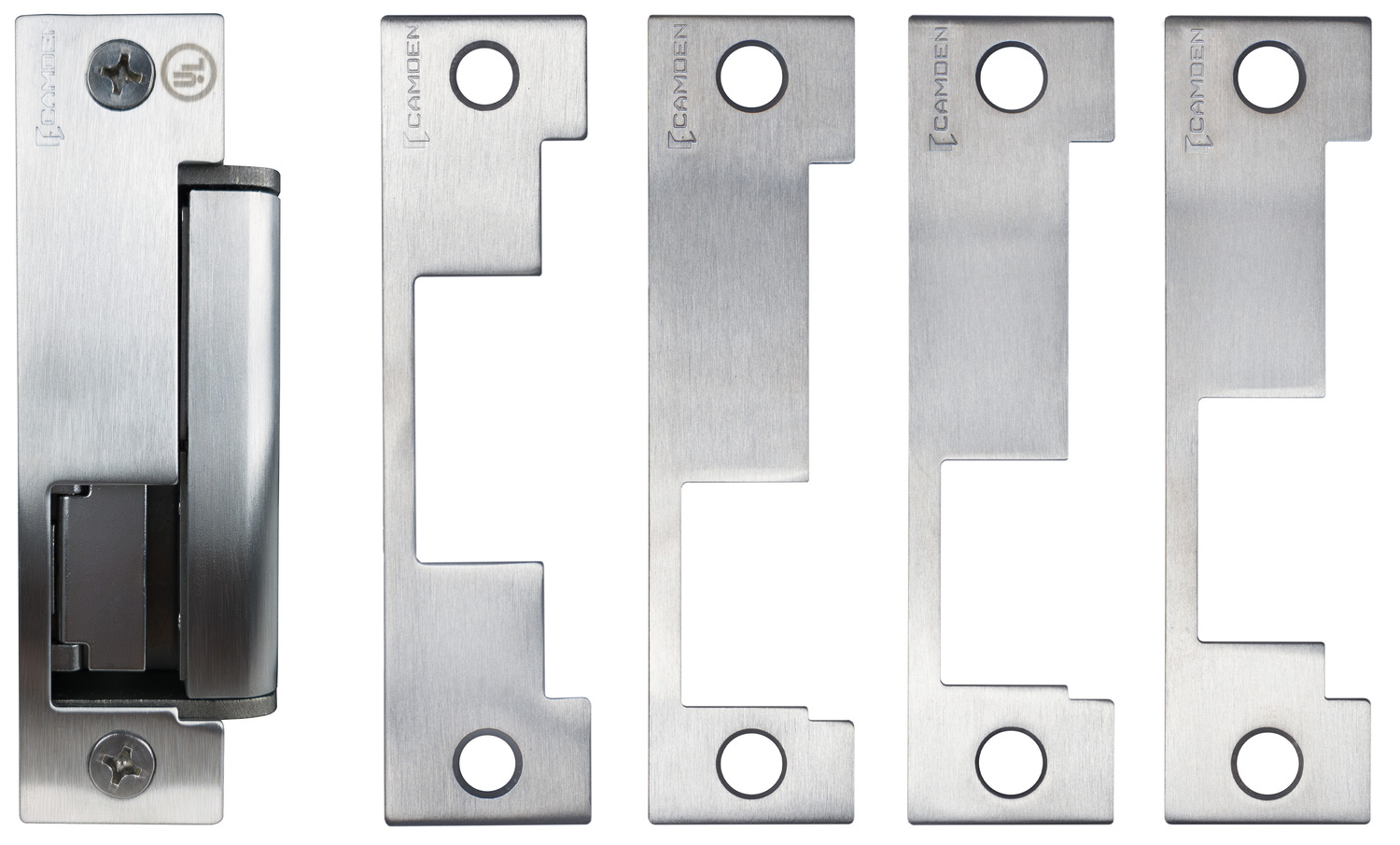

Camden CX-ED1689L-4 Low profile ‘Universal’ ‘All In One’ strike with 1 monitor package includes four faceplates (for latchbolts) and are compatible with most mortise and cylindrical locksets. Field selectable voltage (12/24V, AC/ DC), fail safe/fail secure operation.

Compare
Add to wishlist
Category:
Description

ITEM EXTENDED DESCRIPTION:
Low Profile Mortise Strike, 1 Latch Monitor w/ 4 Faceplates

SELECTION CODE:
108

SELECTION CODE DESCRIPTION:
108 ELECTRIC STRIKES

PRODUCT CODE:
MORTISE GRADE 1

PRODUCT CODE DESCRIPTION:
1500/1600/1700 SERIES

Features:
BHMA/ANSI A156.31, Grade 1 certified|For mortise and cylindrical locksets|Selectable fail safe / fail secure|Selectable 12/24V AC/DC|1 or 2 latch and deadbolt monitoring switches|Magnetic door position switch|Strike power monitor|Easy fit connectors|5 year warranty|Low Profile strike w/ latch monitoring package includes 4 faceplates for latch bolts

Specifications:
“Voltage=12/24V AC/DC|Current Draw=300mA @ 12V AC/DC
150mA @ 24V AC/DC|Static Strength=1,500 lbs|Dynamic Strength=70 ft-lbs|Endurance=1,500,000 Cycles (Factory Tested)
500,000 Cycles (UL Verified)|Mode=Field Selectable Fail Safe / Fail Secure|Operation=AC-Buzz, DC-Silent|Duty=Continuous|Lock Monitor Status=2 x SPST, 100mA @ 24V DC, Resistive|Strike Monitor Status=SPDT, 100mA @ 24V DC, Resistive”

Manual

CX_ED1689L_4_CX_ED1799L_8-RESOURCE_FILE-manuals-67205_CX_ED1689L_Manual_R1

Reference Guides



CX_ED1689L_4_CX_ED1799L_8-RESOURCE_FILE-referenceguides-66060_Electric_Strike_Selection_Guide_R5

Specsheets

CX_ED1689L_4_CX_ED1799L_8-RESOURCE_FILE-specsheets-67196_CX_ED1689_CX_ED1799_Spec_Sheet_R4

Video
