ITEM EXTENDED DESCRIPTION:

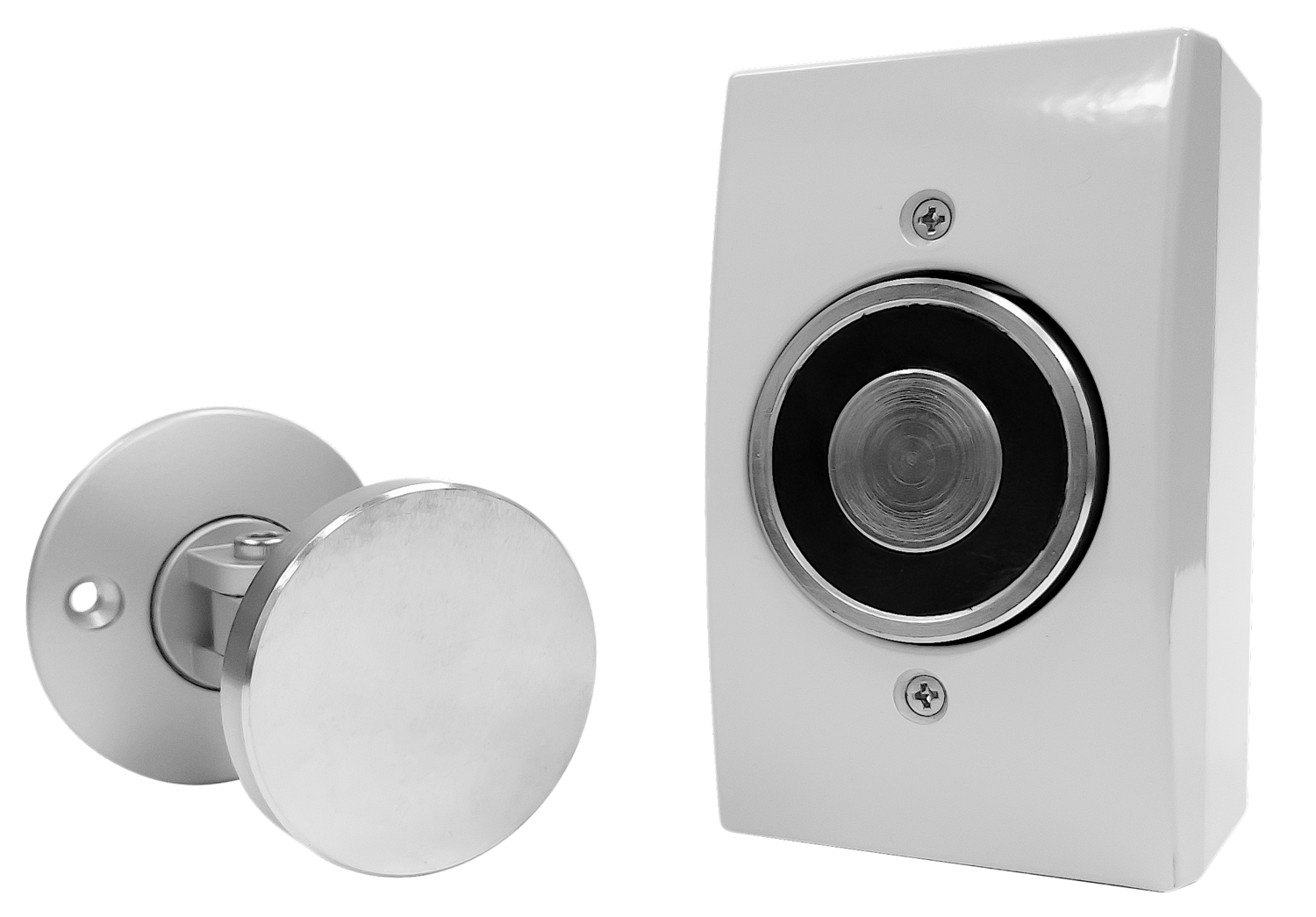

Magnetic Door Holder Surface/Flush Mount
SELECTION CODE:
135
SELECTION CODE DESCRIPTION:
135 MAGNETIC LOCKS
PRODUCT CODE:
DOOR HOLD OPEN
PRODUCT CODE DESCRIPTION:
CX-95 SERIES
Features:
Multiple voltages: 12/24V, AC/DC, 120 VAC|Armature plate adjusts to door alignment|Up to 35 lbs (16 kg) holding force|Used for door release in public, industrial and commercial applications|3 year warranty
Specifications
“Voltage=12/24 VDC|Temp Range=32°F to 131°F (0°C to 55°C)|Armature Plate=600 lbs.:
2 x 7-1/4″” x 1-1/2″” x 15/32″”
2 x (185mm x 38mm x 12mm)
1,200 lbs.:
2 x 7-9/32″” x 3″” x 5/8″”
2 x (185mm x 61mm x 16.5mm)”
Manual
CX_95S_DH-RESOURCE_FILE-manuals-66489_CX_DH_LBRK_Manual_R1
Specsheets
CX_95S_DH-RESOURCE_FILE-specsheets-66436_CX_95S_DH_Series_Spec_Sheet
