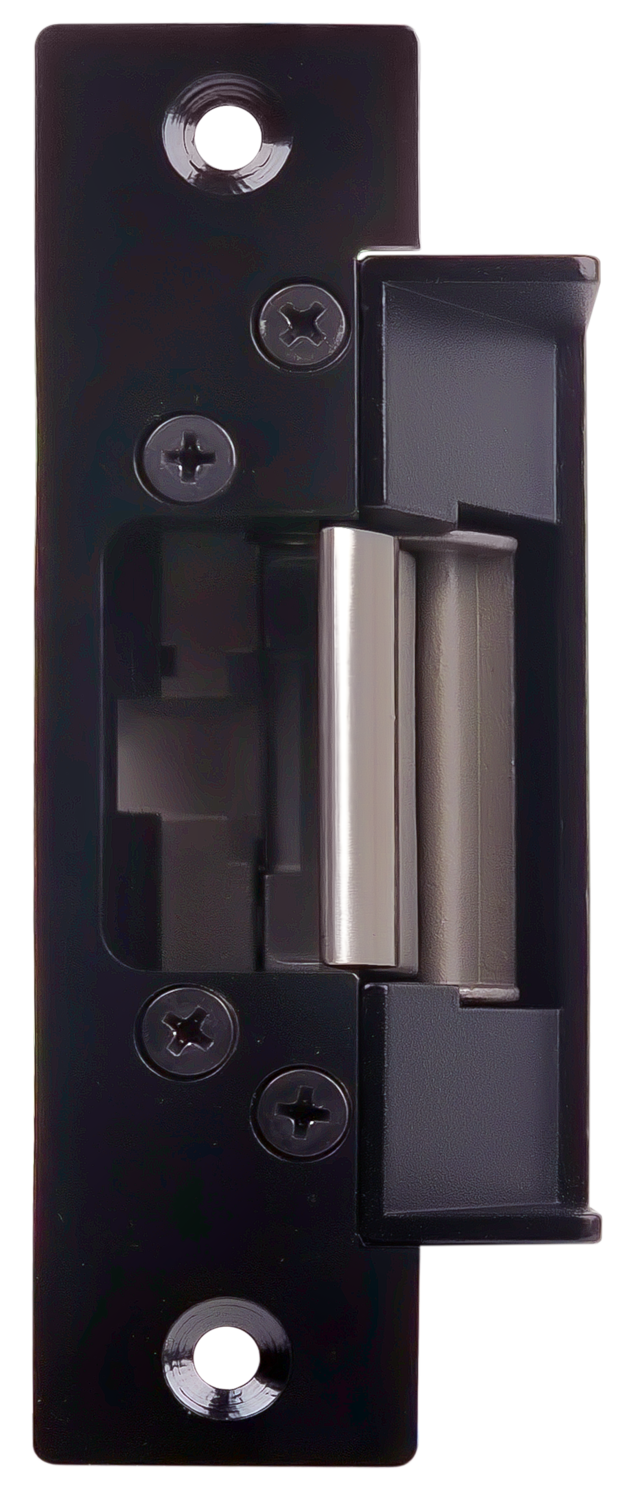

CX-ED1410-BK

ITEM EXTENDED DESCRIPTION:
ANSI Strike,Low Profile,Fire Rated, Grade 1, Blk

SELECTION CODE:
102

SELECTION CODE DESCRIPTION:
102 ELECTRIC STRIKES

PRODUCT CODE:
ANSI GRADE 1 FIRE

PRODUCT CODE DESCRIPTION:
1400 SERIES

Features:
“BHMA/ANSI A156.31, Grade 1 certified|Centerline latch entry for cylindrical locksets, with ANSI square faceplate|UL 90 minute fire and UL 1034 burglary listed|Dual voltage 12/24V AC/DC|ANSI square faceplate included, 4-7/8″” x 1-1/4″”
(124mm x 32mm)|Field selectable fail safe / fail secure operation|Trim plate included|5 year warranty”

Specifications:
“Voltage=12 or 24V AC/DC|Current Draw=260 mA @ 12 VDC
150 mA @ 24 VDC|Static Hold Force=1,500 Lbs.|Dynamic Strength=70 Ft-Lbs.|Endurance=1,000,000 cycles (factory tested), 500,00 cycles (UL verified)|Fire Rating=90 minutes (UL verified)|Operation=AC – Buzz
DC- Silent|Latch Projection=CX-ED1410: 5/8″” – 3/4″” (16mm – 19mm)
CX-ED1420: 1/2″” – 5/8″” (12mm – 16mm)|Mode=Field selectable fail safe / fail secure (Fire rated in fail secure mode only)|Duty=Continuous|Dimensions=CX-ED1410:
3-3/8″” L x 1-7/8″” W x 1-3/8″” D (86mm x 47mm x 35mm)
CX-ED1420:
3-3/8″” L x 1-7/8″” W x 1-3/16″” D (86mm x 47mm x 31mm)”
